RAM-B-408-37-62U

RAM Mounts Torque Small Rail Base

Ideal mounting base for motorcycle mirror rails, vehicle headrests, and much more

Ram Mounts
 2,079.00 ( incl. GST )
Excl. Shipping & Other Charges  [?]  Order Now to ship Tomorrow  [?]

Ideal mounting base for motorcycle mirror rails, vehicle headrests, and much more

1761.864406779661017
Availability : In stock SKU : RAM-B-408-37-62U
Did You Know ?
Specifications
Installation
Did You Know ?

Product Description

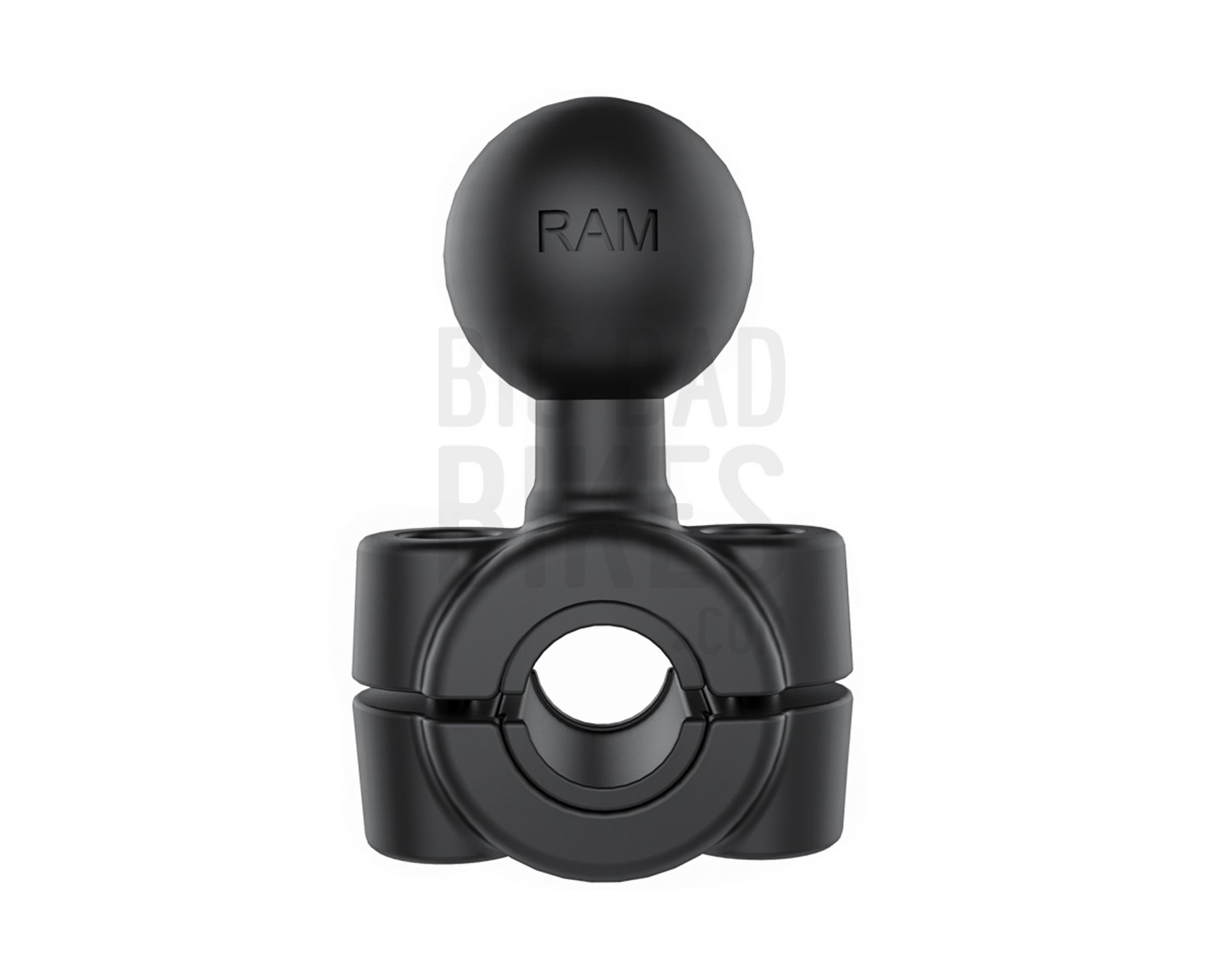

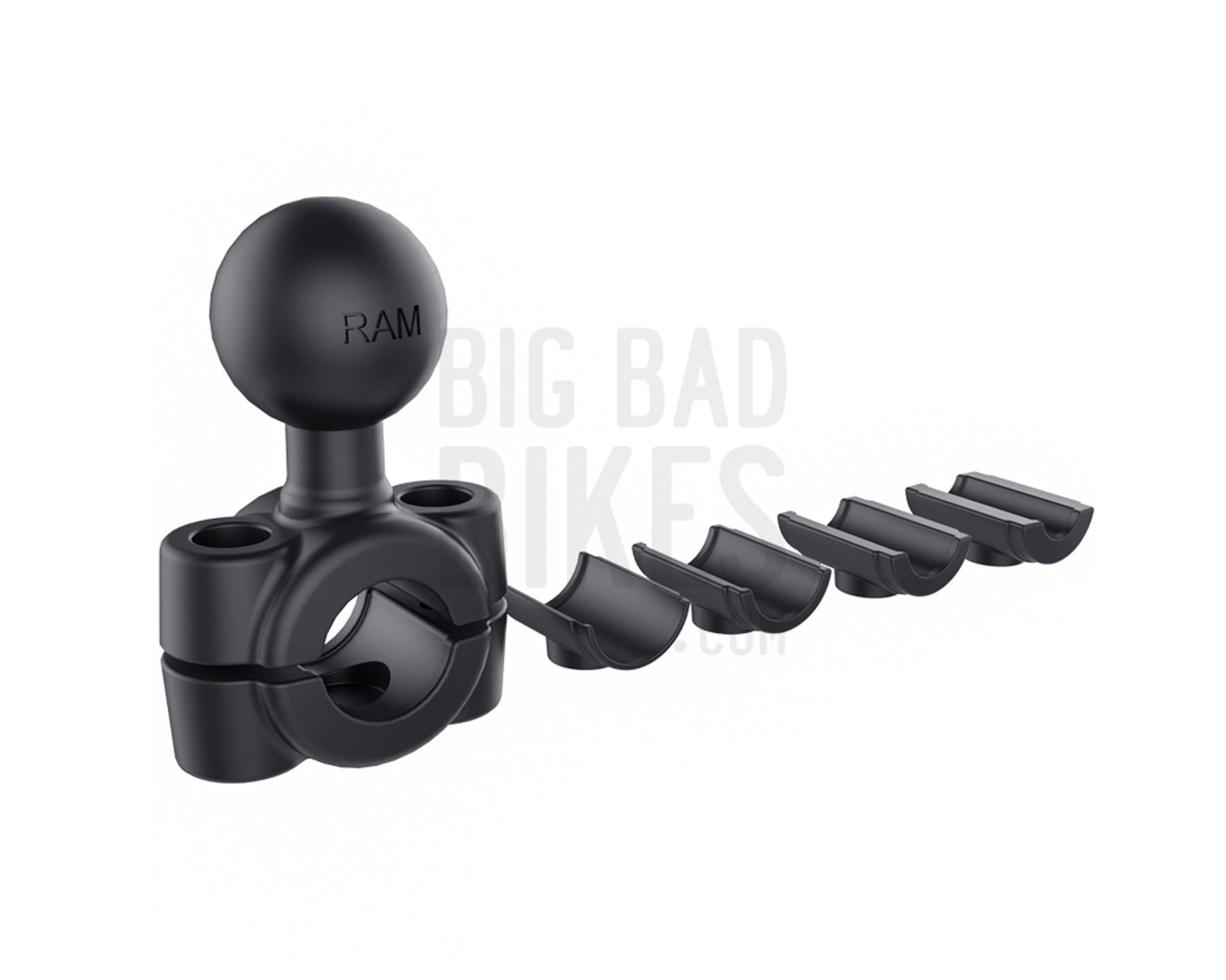

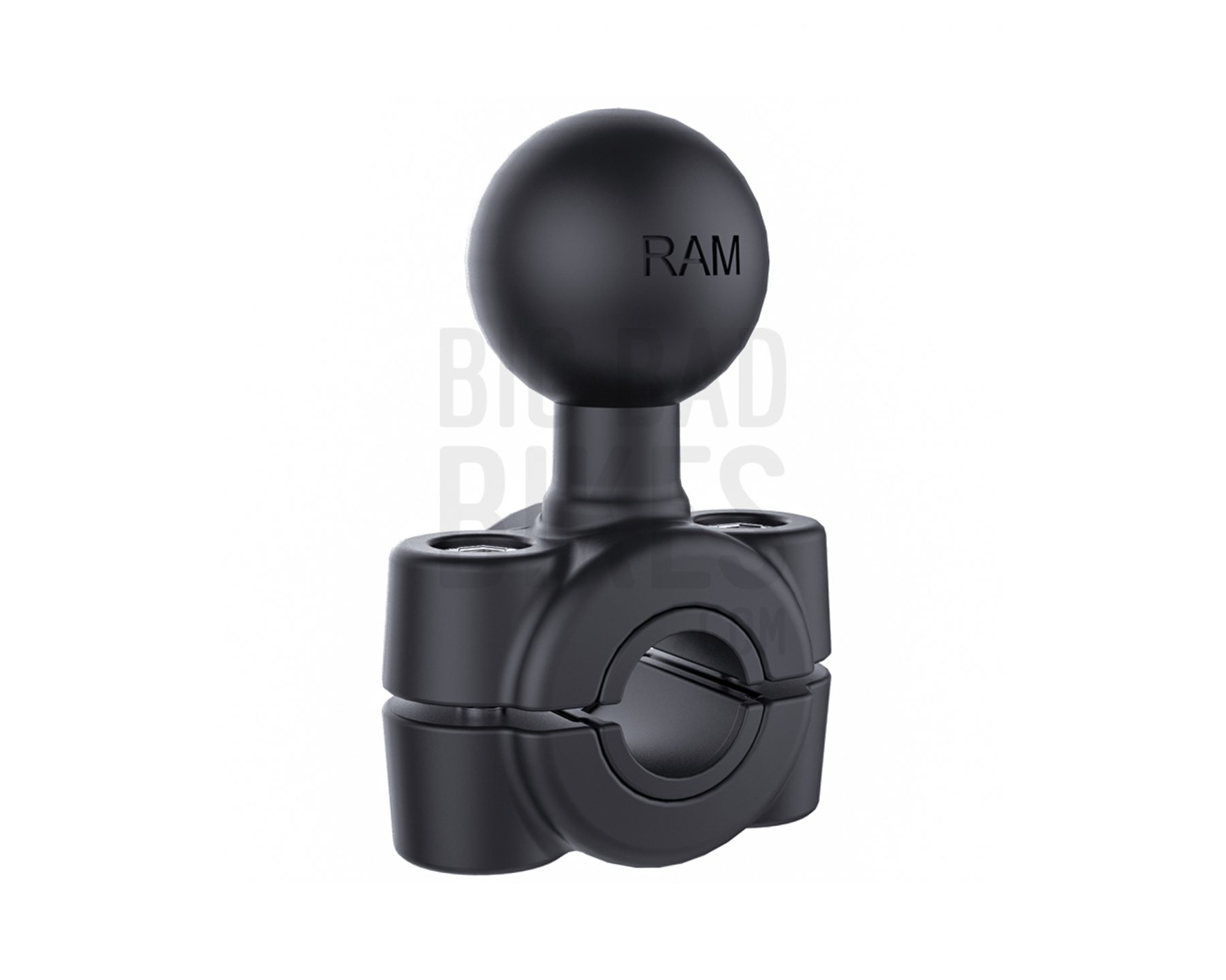

The RAM Torque small rail base features a B size 25.4mm rubber ball and accommodates rails from 9.52mm to 15.87mm in diameter. Sizing inserts are included to provide a snug fit and protection of the rail. The mount utilizes nylon-insert locknuts to prevent loosening in high vibration environments. The RAM Torque small rail base allows for mounting to scooter mirror rails as well as vehicle headrests and other round rails within the stated dimensions. It’s made of powder-coated, marine-grade aluminium for durability and reliability in the most demanding environments

Highlights

Ideal mounting base for scooter mirror rails, vehicle headrests, and much more
Included B size 25.4mm RAM® rubber ball allows for connection to any B size RAM® double socket arm;
Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
Backed by a lifetime warranty

Required Accessories

Mount Base Only. RAM Arm + Cradle/ Holder for Device sold separately

Additional Information

RAM® Torque™ Mount – Rugged Handlebar and Rail Mounting System
https://youtu.be/bjs1BFZgL7I
Source: RAM Mounts

Specifications

Product Specifications

Material: Marine-grade Aluminium / Rubber
Surface: Powder coated
Color: Black
Ball / Socket Size: B Size (25.4mm)
Clamp Range: 9.52mm x 15.875mm
Weight: 0.095kgs
Maximum Load: 0.90kgs

What’s in the box?

RAM Torque Small Rail Base x 1

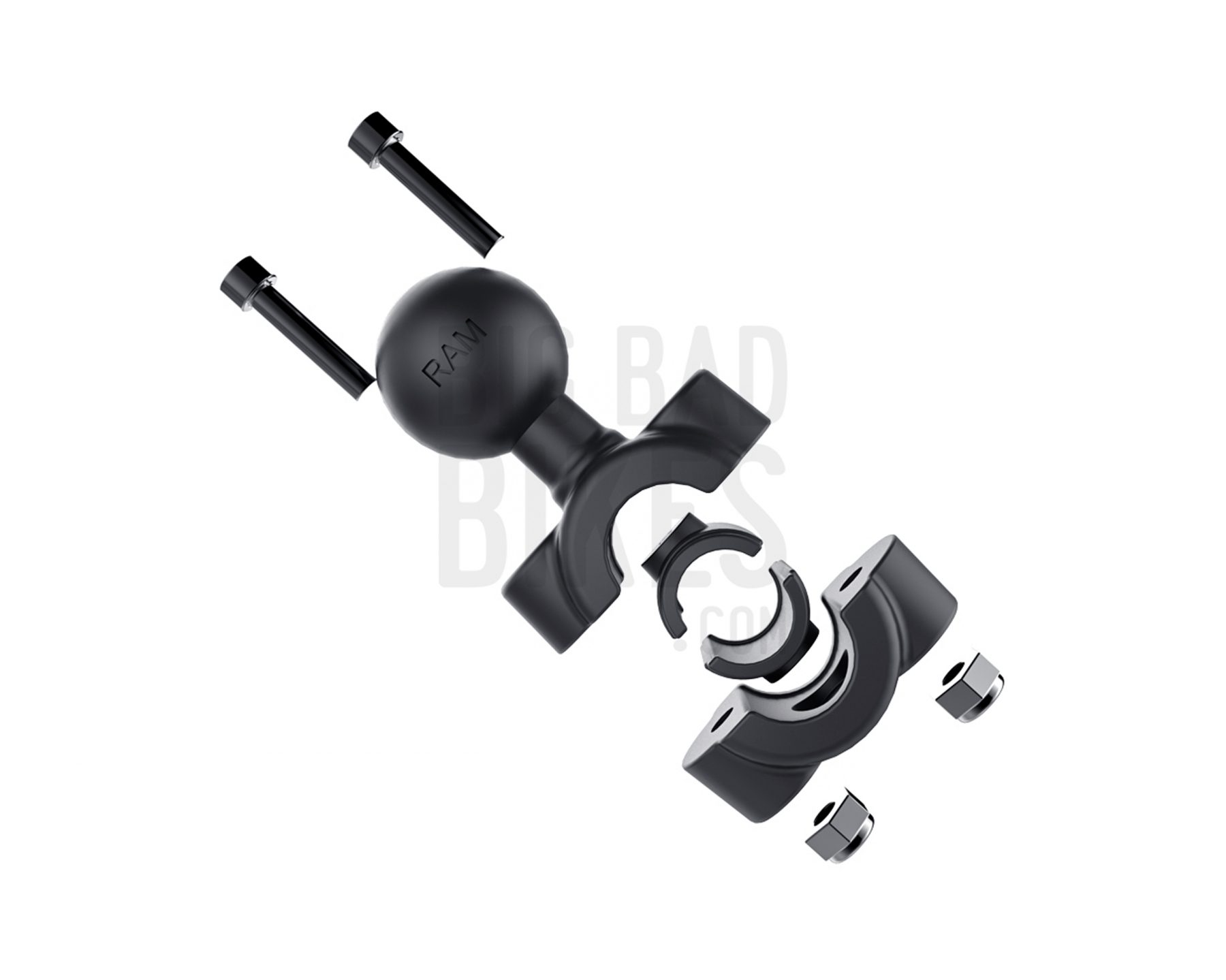

Hardware included:
#8-32 x .75″ Socket Head Cap Screws x 2
#8-32 Nylock Nuts x 2
.32″ Composite Bushings x 2
.4″ Composite Bushings x 2
.47″ Composite Bushings x 2
.55″ Composite Bushings x 2
57.2mm Rubber Strip x 1
9/64″ Hex Key Wrench x 1

Installation

Torque Base Installation Guide

Headrest Tablet Mount – RAM Torque™ Mount Installation
https://youtu.be/5ce2Qhx6YIE
Source: RAM Mounts
