A simple way to securely mount electronic devices on your motorcycle

3812.711864406779661
Availability : In stock SKU : RAM-B-149Z-UN7U
Did You Know ?
Specifications
Installation
Did You Know ?

Product Description

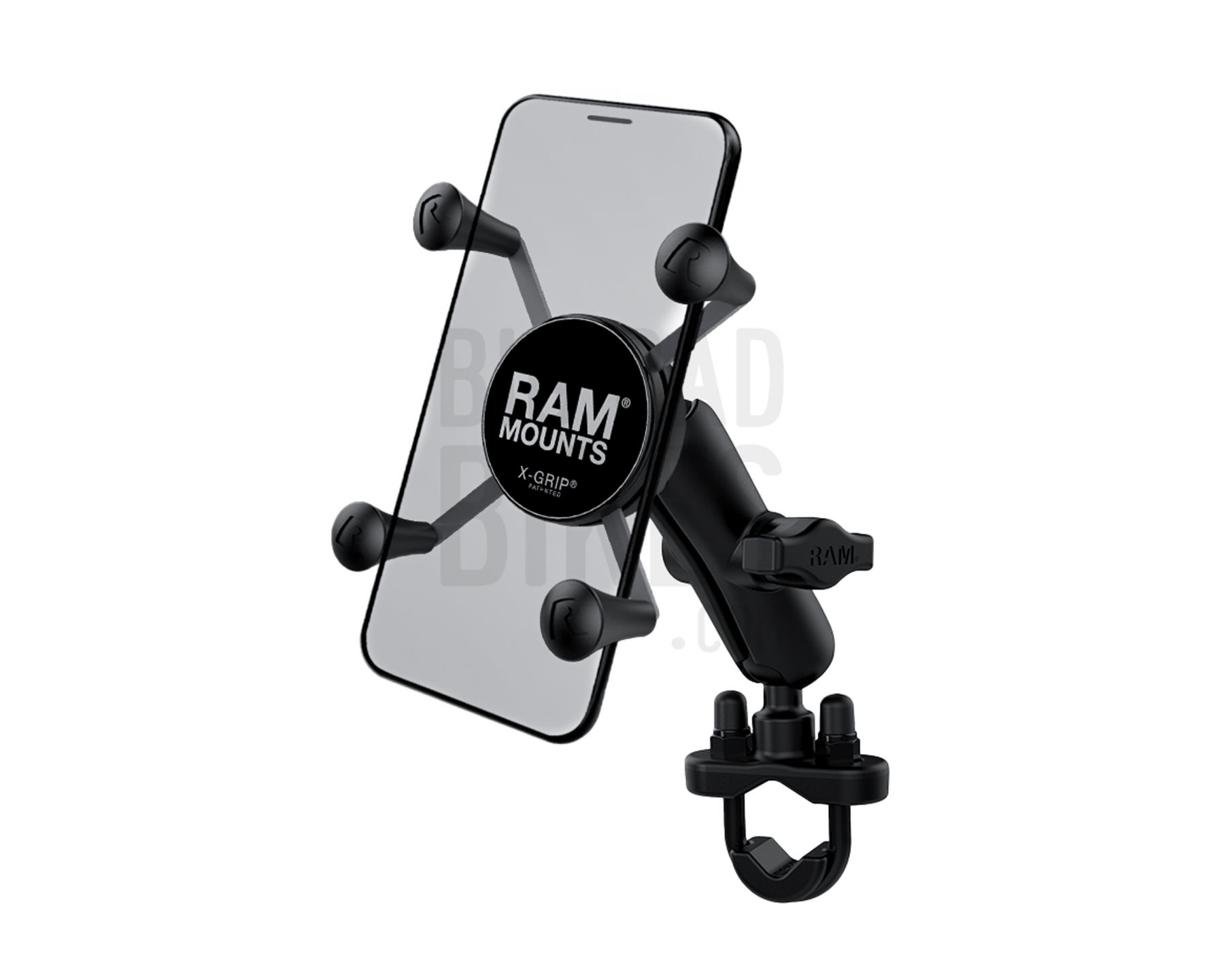

Now mount electronic devices on your motorcycle easily as well as securely. The RAM X-Grip Phone Mount with Handlebar U-Bolt Base consists of a zinc coated u-bolt base, double socket arm and universal X-Grip cradle.

Included in this package is hardware that will accommodate rails from 12.7mm – 31.75mm in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The mount is designed with a RAM 25.4mm diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The included composite rail adapter can narrow the rail to a minimum width of 12.7mm. The included X-Grip cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip cradle expands and contracts, allowing for a perfect custom fit of your cell phone. The perfect complement to the modern sleek interior of today’s vehicles, the RAM X-Grip is the cell phone cradle evolved. The X-Grip includes a device tether recommended for outdoor applications.

The unit is made of powder-coated, marine-grade aluminium, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments

The cradle is compatible with handheld devices that will fit the dimensions listed in the Product Specifications. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

Highlights

Spring-loaded ‘X Grip’ design with rubber caps sports great holding power without hiding your phone
U-bolt base accommodates rails from 12.7mm – 31.75mm in diameter
Backed by a lifetime warranty

Specifications

Product Specifications

Material: Marine-grade Aluminium / High strength composite / Stainless steel
Surface: Zinc coated
Color: Black / Silver
Holder Dimensions – Width Range: 47.625mm – 82.55mm
Holder Dimensions – Depth Range: 22.22mm max
Clamp Range: 12.7mm – 31.75mm diameter
Socket to Socket Length: 76.2mm
Ball / Socket Size: B Size (25.4mm)
Weight: 0.35kgs
Maximum Load: 0.90kgs

What’s in the box?

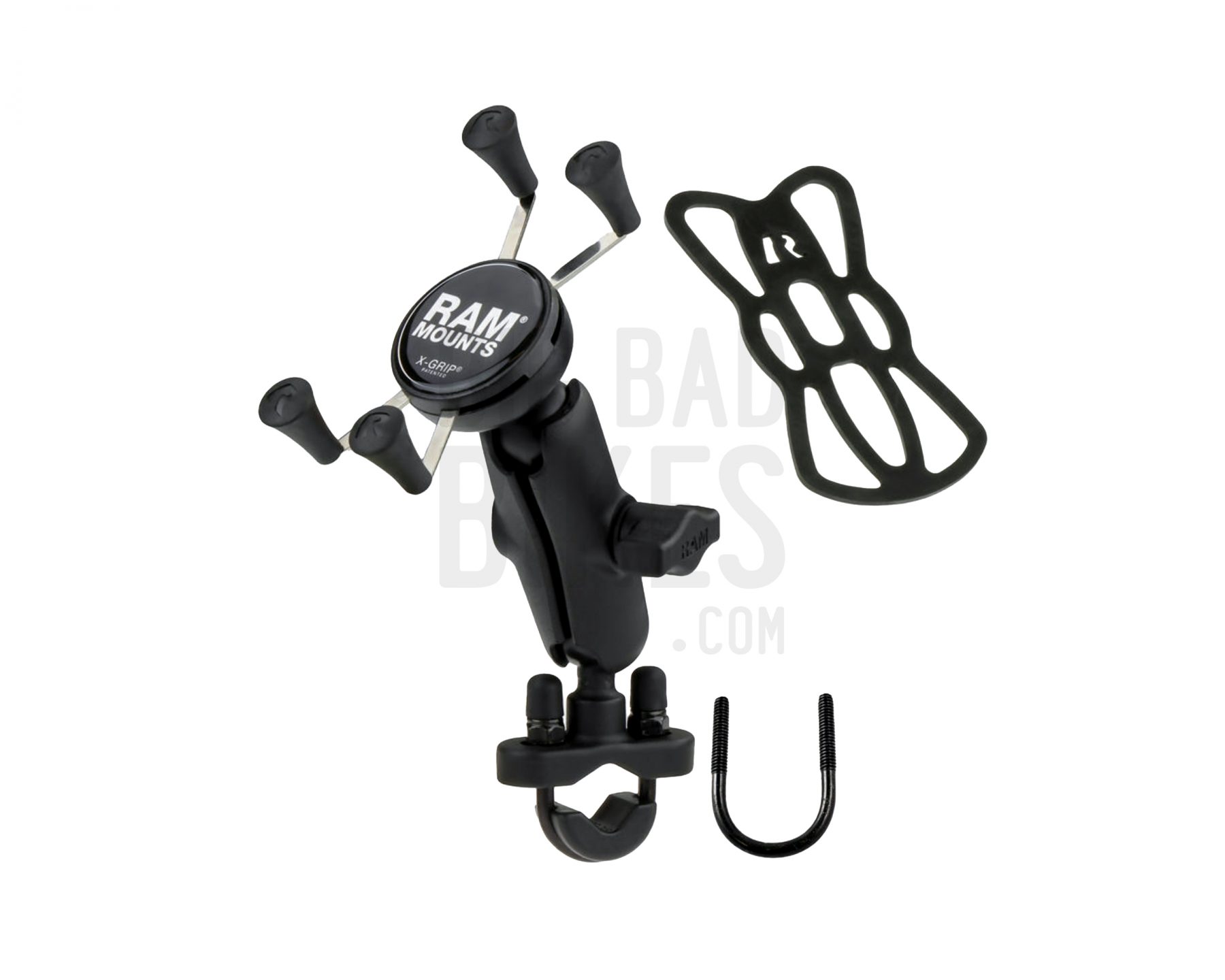

RAM X-Grip Phone Mount with Handlebar U-Bolt Base x 1
Including:
U-bolt base x 1
Double socket arm x 1
Universal X-Grip cradle x 1
Optional Tether x 1
Glue Tube for Rubber Caps x 1
1/4″-20 U-Bolt for .5″ – 1″ Rails x 1
1/4″-20 U-Bolt for 1″ – 1.25″ Rails x 1
1/4″-20 Nylock Nuts x 2
Rubber Caps x 2
U-Bolt Spacer x 1

Installation

Drawing File – U-Bolt Ball Base

RAM® U-Bolt Base Assembly Guide

RAM® X-Grip® Assembly Guide

RAM® X-Grip® Tether Instructions
https://youtu.be/S8ky_uKTw98

Source: RAM Mounts
