A simple way to securely mount large phones on your motorcycle

3983.050847457627119
Availability : Out of stock SKU : RAM-B-149Z-UN10U
Did You Know ?
Specifications
Installation
Did You Know ?

Product Description

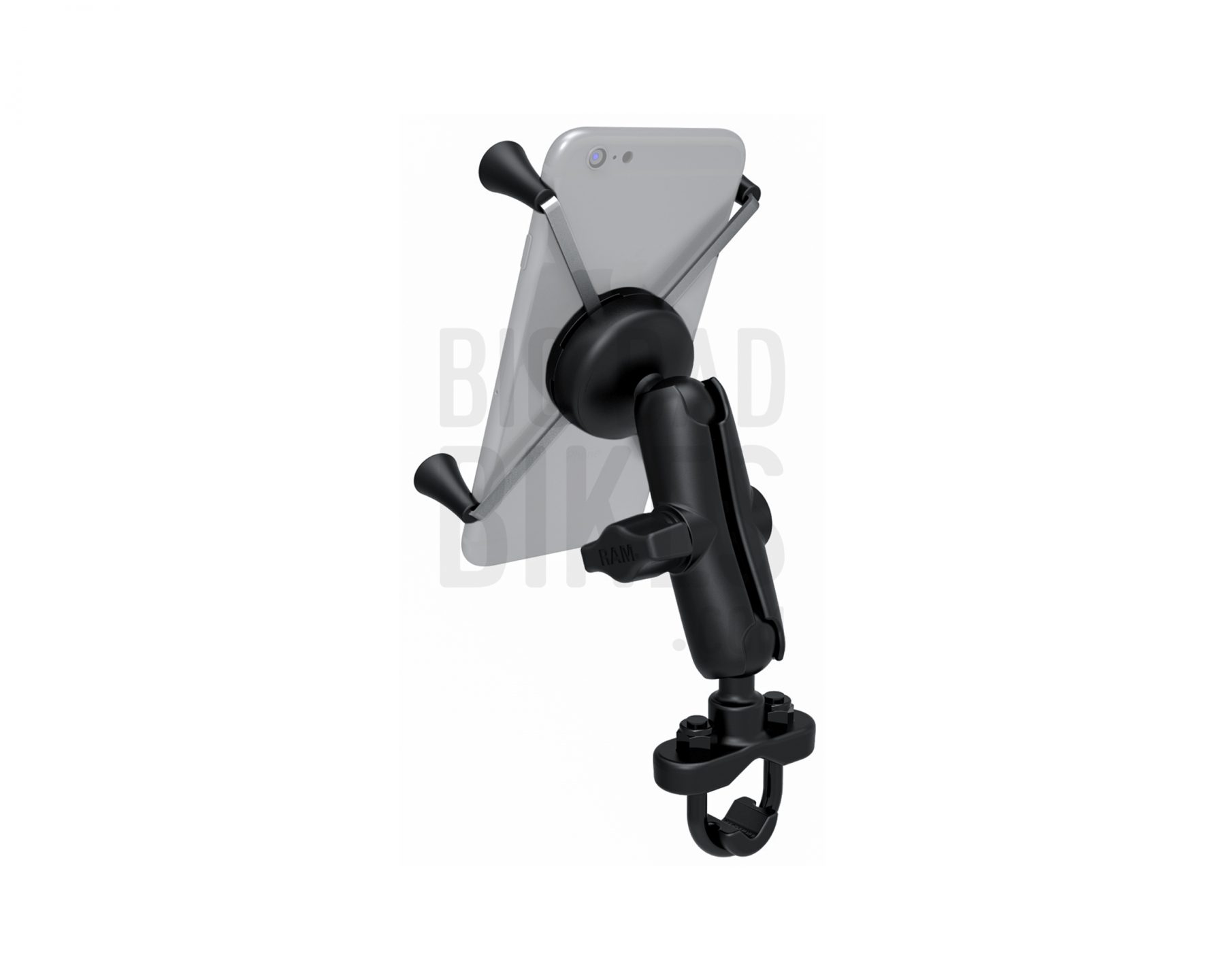

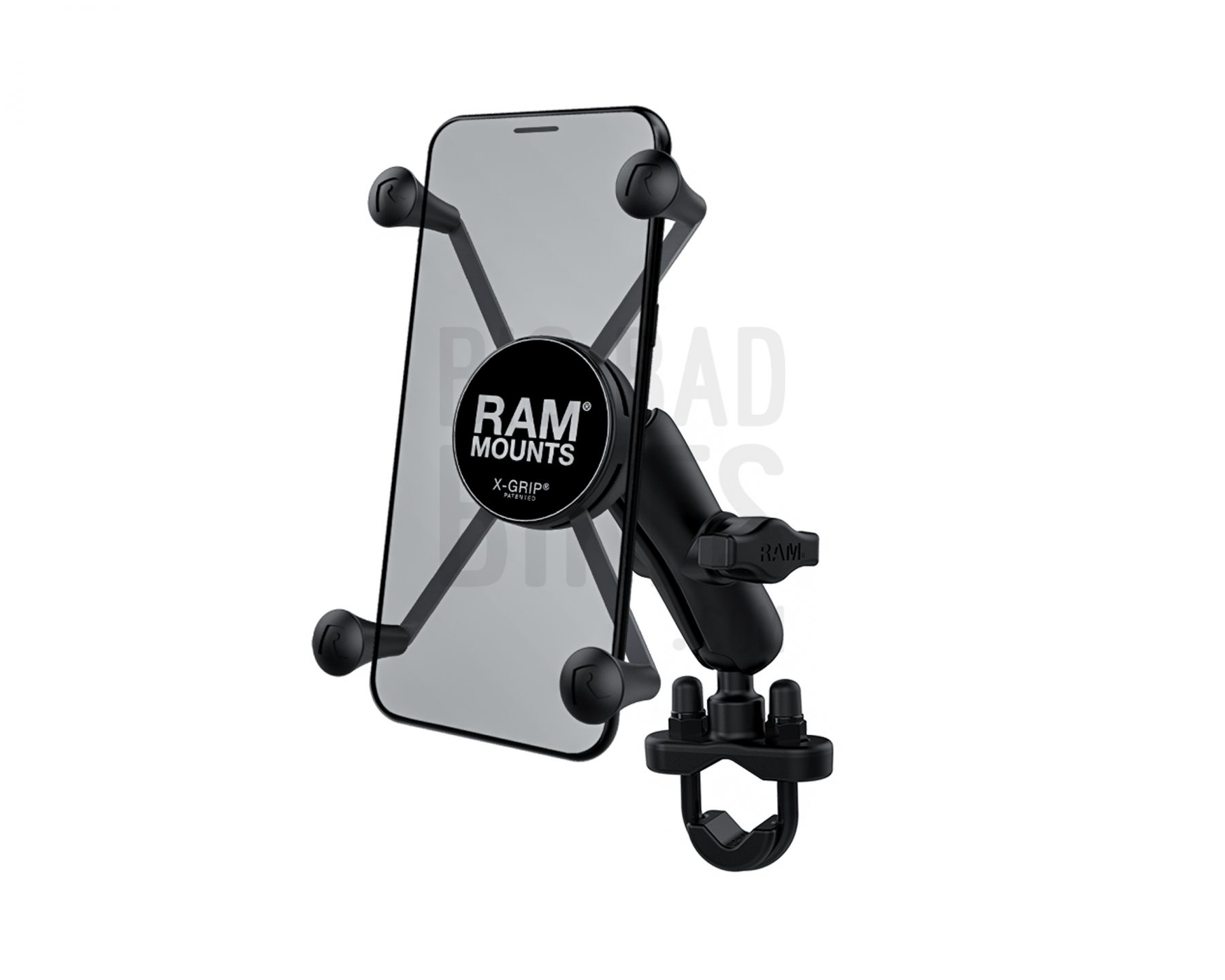

Now mount large phones to your motorcycle, easily as well as securely. The RAM X-Grip Phone Mount with Handlebar U-Bolt Base consists of a zinc coated u-bolt base, medium length double socket arm and the spring-loaded RAM X-Grip large phone holder.

Included in this package is hardware that will accommodate rails from 12.7mm – 31.75mm in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 12.7mm. The mount is designed with a RAM 25.4mm diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm. RAM ball and socket technology allows for near-infinite adjustability to achieve the ideal viewing angle – while also extending the life of your phone by providing shock and vibration damping.

The included X-Grip cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip cradle expands and contracts, allowing for a perfect custom fit of your cell phone. This large version of the RAM X-Grip fits phones ranging from 44.45mm to 114.3mm in width and keeps your device completely functional and accessible.The perfect complement to the modern sleek interior of today’s vehicles, the RAM X-Grip is the cell phone cradle evolved. For outdoor applications, the RAM X-Grip includes a device tether that is recommended for added security and peace of mind.

The unit is made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments

The cradle is compatible with handheld devices that will fit the dimensions listed in the Product Specifications. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

Highlights

Spring-loaded ‘X’ design for large phones, with rubber caps sports great holding power without hiding your phone
U-bolt base accommodates rails from 12.7mm – 31.75mm in diameter
Includes optional device tether for peace of mind during rugged use
Backed by a lifetime warranty

Additional Information

RAM® Mounts Handlebar Rail Mount with RAM® X-Grip® Large Phone/Phablet Holder
https://youtu.be/zk_HCCbzOTU
Source: RAM Mounts

RAM® X-Grip® Series – Universal Smartphone & Tablet Holders
https://youtu.be/J68iR85SkLE
Source: RAM Mounts

Specifications

Product Specifications

Material: Marine-grade Aluminium / High strength composite / Stainless steel
Surface: Zinc coated
Color: Black / Silver
Holder Dimensions – Width Range: 44.45mm – 114.3mm
Holder Dimensions – Depth Range: 22.22mm max
X-Grip – Minimum height: 82.55mm, Maximum width: 114.3mm
X-Grip – Maximum height: 139.7mm, Minimum width: 44.45mm
Clamp Range: 12.7mm – 31.75mm diameter
Socket to Socket Length: 76.2mm
Ball / Socket Size: B Size (25.4mm)
Weight: 0.34kgs
Maximum Load: 0.90kgs

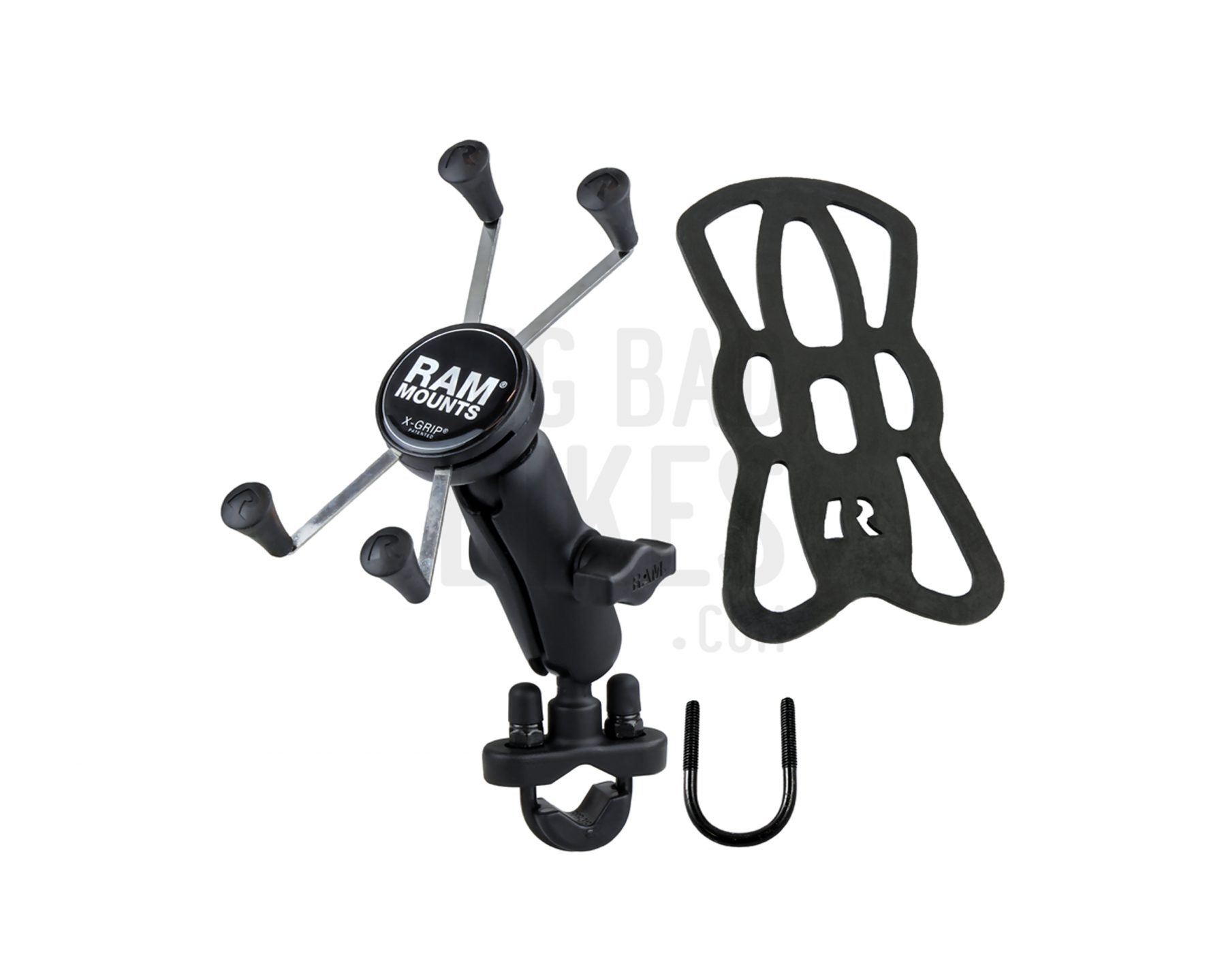

What’s in the box?

RAM X-Grip Large Phone Mount with Handlebar U-Bolt Base x 1
Including:
U-bolt base x 1
Double socket arm x 1
Large X-Grip cradle x 1
Optional Tether x 1
Glue Tube for Rubber Caps x 1
1/4″-20 U-Bolt for .5″ – 1″ Rails x 1
1/4″-20 U-Bolt for 1″ – 1.25″ Rails x 1
1/4″-20 Nylock Nuts x 2
Rubber Caps x 2
U-Bolt Spacer x 1

Installation

Drawing File – U-Bolt Ball Base

RAM® U-Bolt Base Assembly Guide

RAM® X-Grip® Assembly Guide

RAM® X-Grip® Tether Instructions
https://youtu.be/S8ky_uKTw98
Source: RAM Mounts
