Product Description

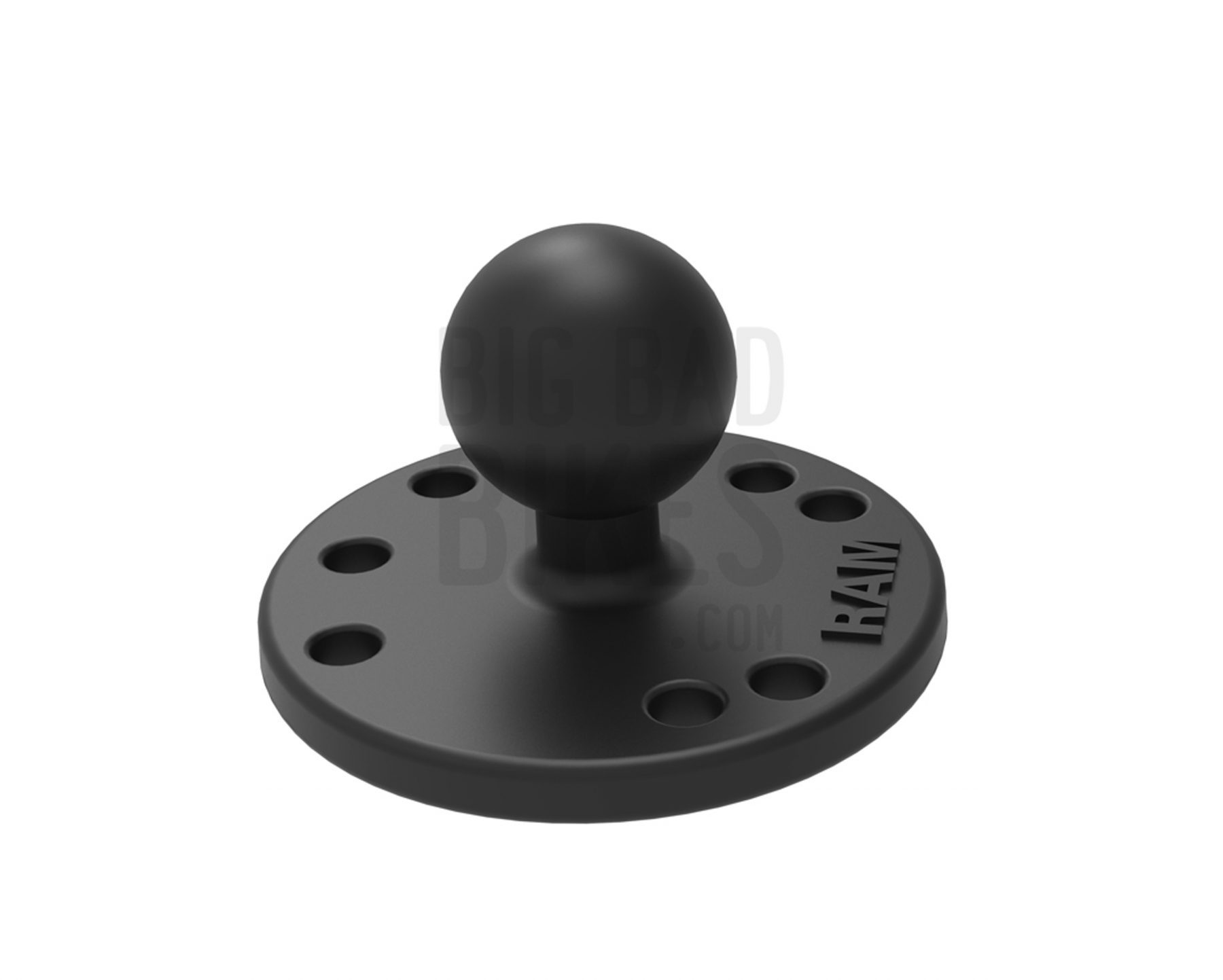

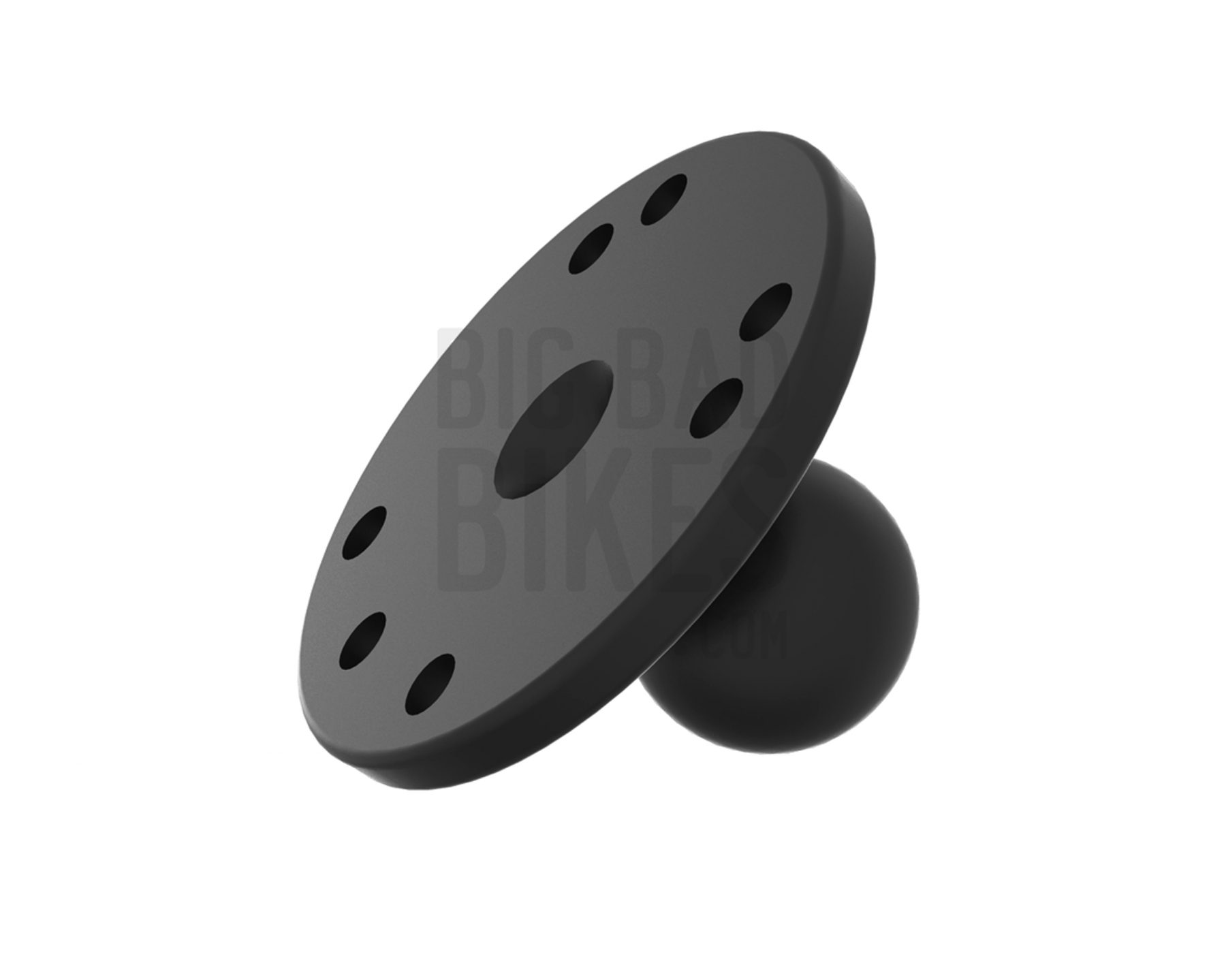

The RAM Round Plate with Ball consists of a 25.4mm B size rubber ball connected to a 63.5mm diameter round plate. This mounting component includes pre-drilled holes using the universal AMPS hole pattern. The round plate connects to any holders with a universal AMPS hole pattern. The B size RAM rubber ball allows for connection to any B size RAM double socket arm; ball and socket technology allows for near-infinite adjustability. The base is made of powder-coated, marine-grade aluminium for durability and reliability in the most demanding environments.

Highlights

Connects to any device holders/case with a universal AMPS hole pattern
B size 25.4mm RAM rubber ball allows for connection to any B size RAM double socket arm;
Made of powder-coated, marine-grade aluminium
Backed by a lifetime warranty

Required Accessories

Adapter Only. RAM Arm + Cradle/ Holder + Mount for Device sold separately

Additional Information

RAM 2.5″ Round Ball Base with the AMPs Hole Pattern & 1″ Ball

https://youtu.be/SmWMGV7pwn8
Source: RAM Mounts

Specifications

Product Specifications

Material: Marine-grade Aluminium / Rubber
Surface: Powder coated
Color: Black
Hole Pattern:
4-Hole AMPS 29.99mm x 37.99mm
3-Hole 120-Degree: 46.02mm diameter
Plate Size: 63.5mm
Ball / Socket Size: B Size (25.4mm)
Weight: 0.068kg
Maximum Load: 0.90kgs

What’s in the box?

RAM Round Plate with Ball x 1
