Denali DM v2.0 TriOptic™ Auxiliary LED Lights
Want to make sure you're visible to others on the road, both day and night? The Denali DMs are the perfect daytime running lights and are a great compliment to your headlights at night

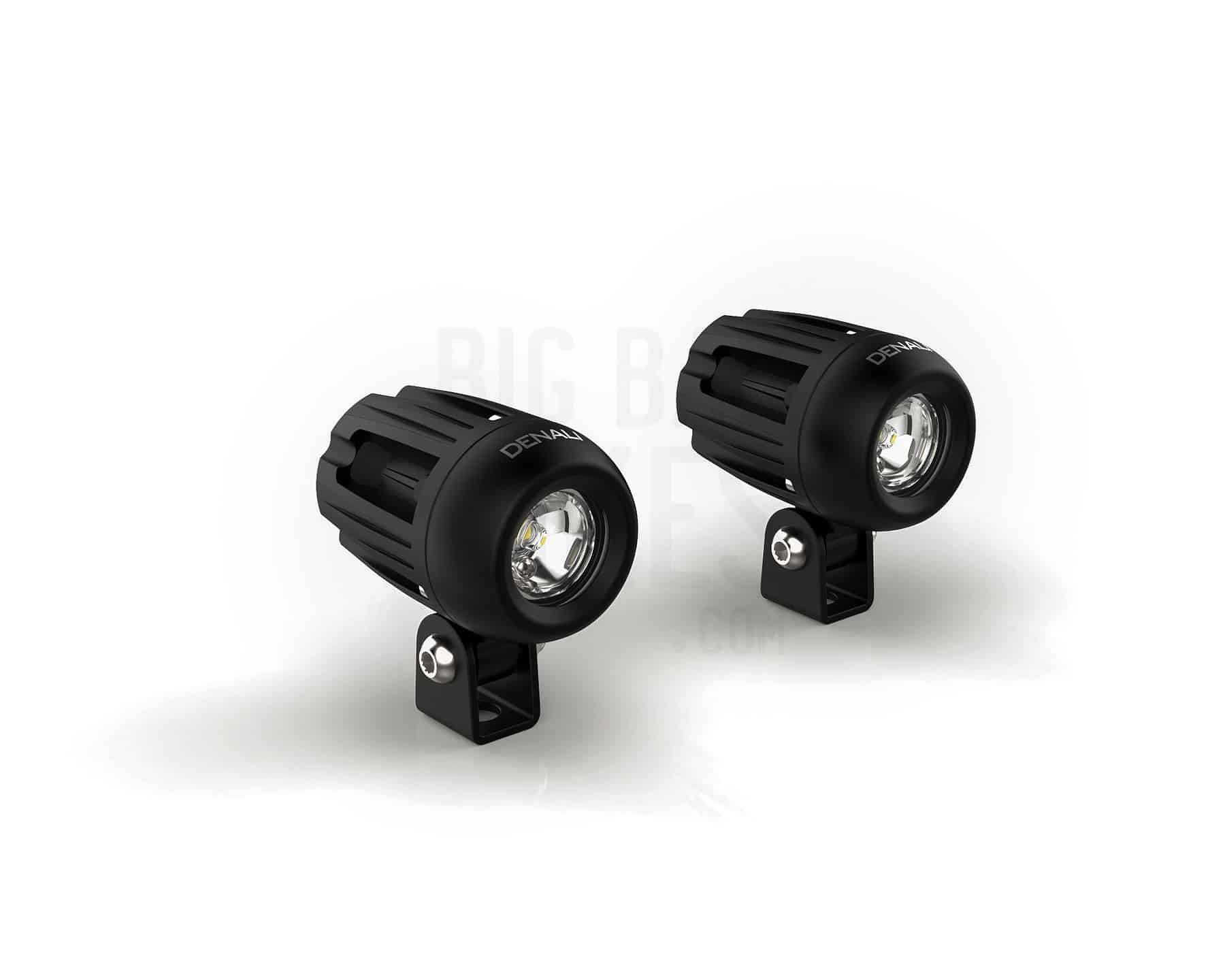

The DENALI DM 2.0 LED TriOptic™ LED light kit with DataDim technology maximizes visibility in an extremely durable, efficient, compact yet very powerful package. The DM is primarily designed for conspicuity, so you’ll stand out from road clutter and be seen by other drivers, but it also provides a useful increase in illumination over your motorcycle’s stock headlight. Fitted into rugged aluminum housings only 43mm in diameter and 61mm long are powerful 10-watt Cree LEDs, providing 120m of useful, confidence inspiring light. The DM’s compact shape allows it to be fitted anywhere your imagination takes it, although it’s really optimized for fender mounting.
The DENALI DM features a durable black powder-coated finish and special cooling fins to make sure the LED itself runs cool and bright. New for the DENALI 2.0 series is a special Impact PC™ corrosion proof bezel that ensures your lights will continue to look great even after repeated stone and debris impacts. Low profile hinge mounts offer secure mounting and include stainless steel M8 mounting hardware for installation on light bars or model specific light mounts.
The DM 2.0 kit uses a just-developed HotSwap™ modular wiring harness that, by default, causes these lights to function at full brightness. But if you would like them to operate at both half and full power, simply add the dual intensity DataDim™ controller. No other changes are required except to replace the original relay with the DataDim™ module and connect one wire to the high-beam circuit. (You can also purchase a three-position switch to manually control light intensity independent of the bike’s high beam.)
Also new with the DENALI 2.0 generation of lighting is the industry-leading TriOptic™ lens system. Each lamp comes with both spot (installed) and flood (supplied) lenses in the box, nothing else to buy. The spot lens produces the greatest beam distance, while the flood lens produces a broader spread of light closer to the motorcycle, filling the road edge and shoulders. To get the best of both worlds, use a spot lens on one light and a flood lens on the other light for distance illumination and a useful spread of light at close range. The flood lenses E-Marked to be road legal in countries where this is a requirement. There are also amber lense kits available as an optional add-on!
With new optics, a revised and more powerful LED, an entirely new wiring harness, and the capability of running in both single- and dual-intensity configurations, the hugely popular DENALI DM just got a whole lot better.
Spot beam, with interchangable flood lenses supplied
Total load 20W, 1.6 amp
Additional information / Product Reviews
Source: Twisted Throttle
Size: 43 mm dia x 61 mm deep
Power Draw: 20W, 1.6 amps

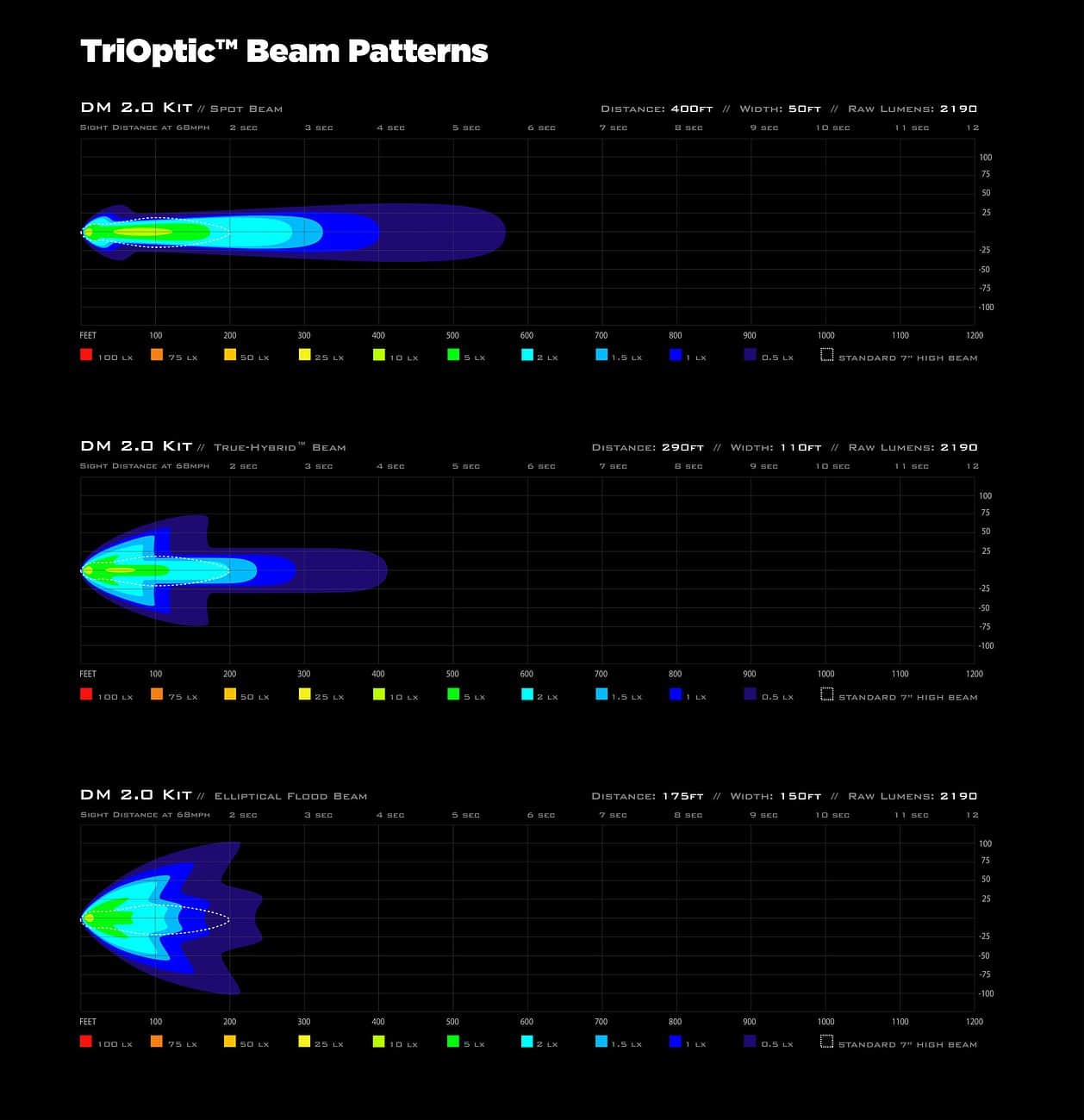

Beam Distance (Spot): 120m
Beam Width (Spot): 16m
Raw Lumens: 2190
LED : 10 watt Cree XPL HI (per lamp)

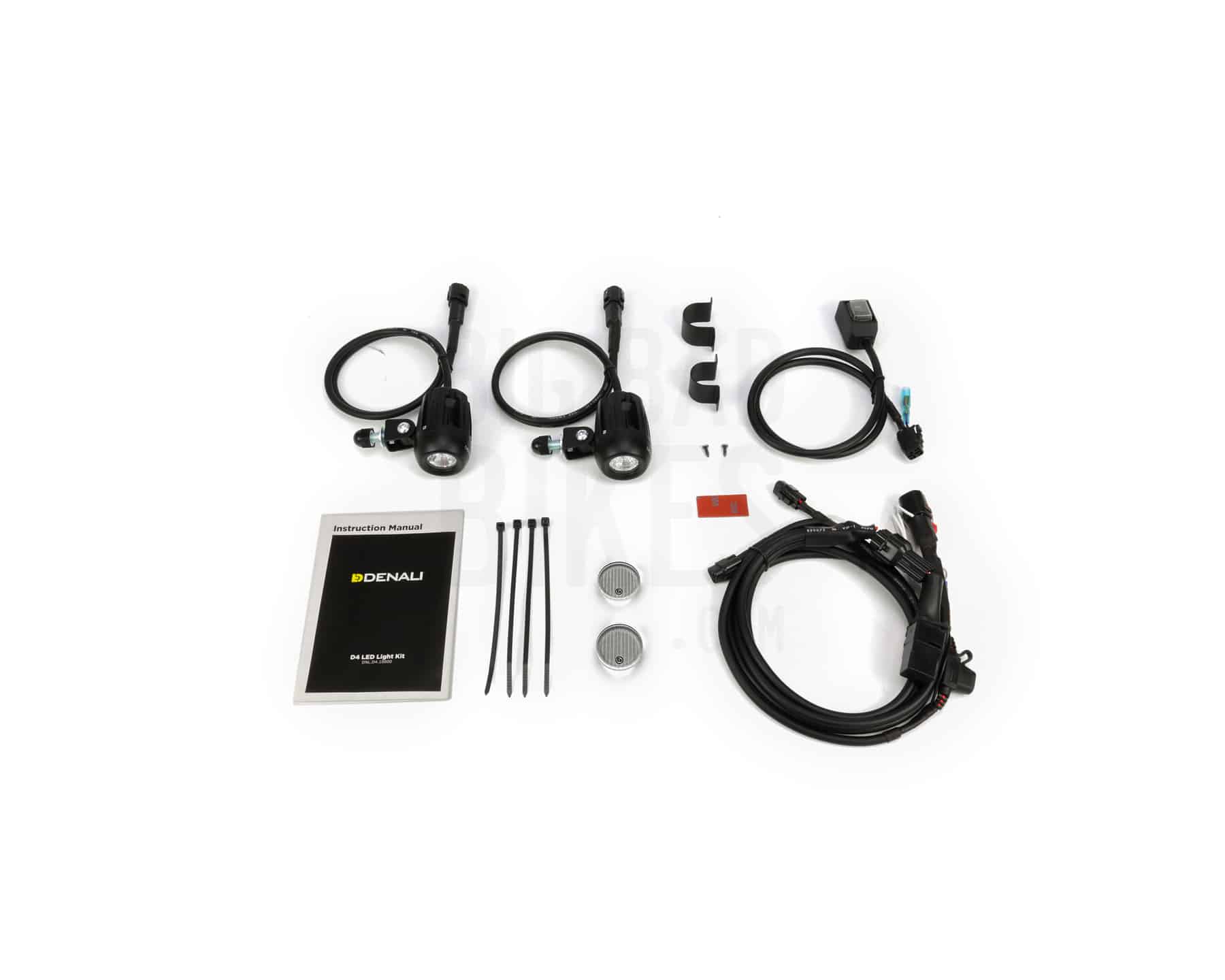

What’s in the box?
Denali 2.0 DM TriOptic™ LED light kit (Pair)
Full Wiring Harness with fuse & relay
