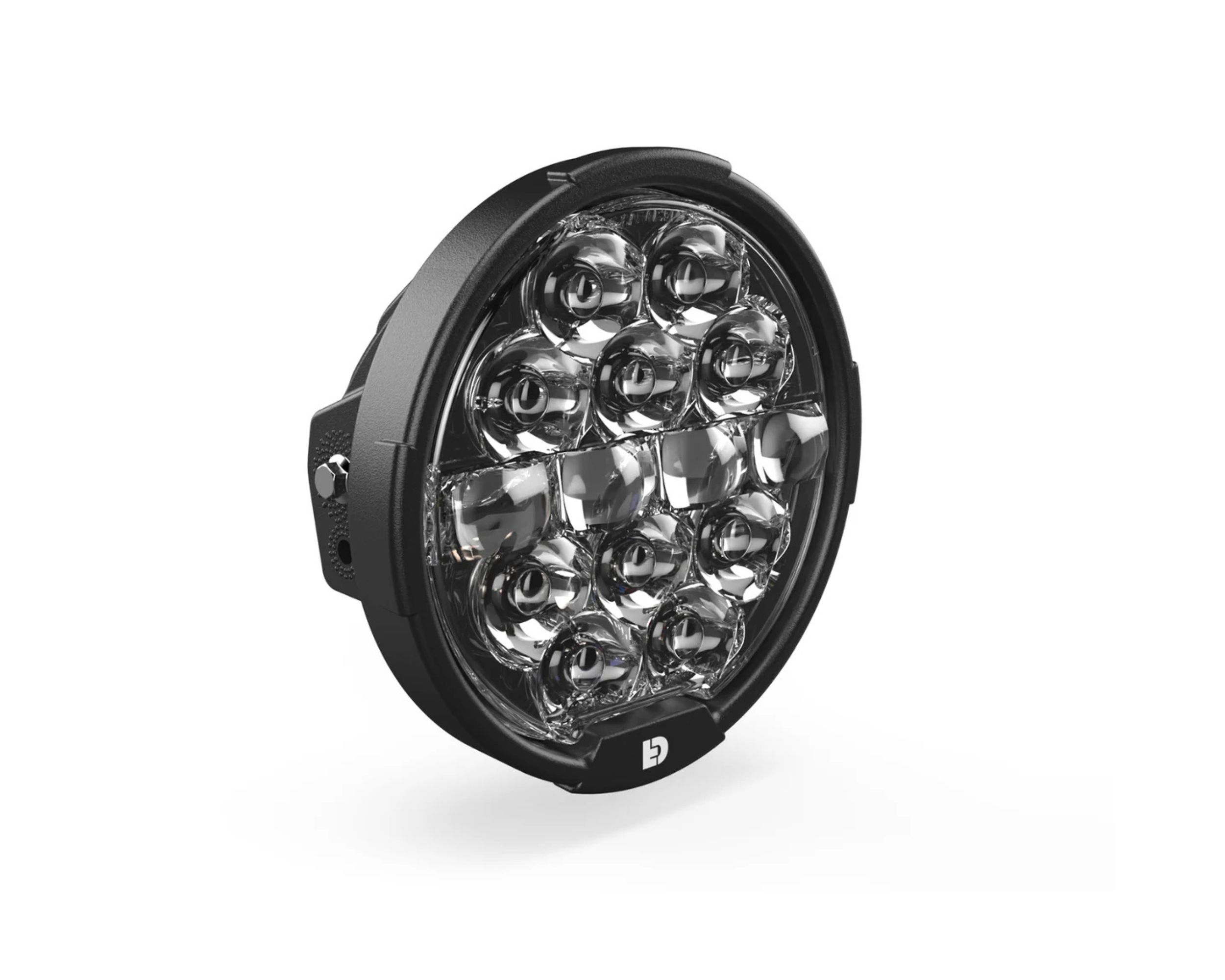

DENALI D14 Destroyer LED Motorcycle Headlight – Universal
Destroy the dark and seize the day with un-matched style and insane performance!
Excl. Shipping & Other Charges [?]
- Product Details
Product Description
Denali Electronics brings you the Denali D14 Destroyer LED Motorcycle Headlight. Destroy the dark and seize the day with un-matched style and insane performance. The Destroyer headlight features multiple industry first innovations making it the brightest and most feature-rich headlight ever released.
Imagine a super rugged 12,900 lumen DOT headlight with unmatched beam performance, then add a stylish linear low beam, two different high beam intensity options, and a modular lens system that lets you change the color of your low beam on the fly. Denali did, and it just destroyed the status quo.

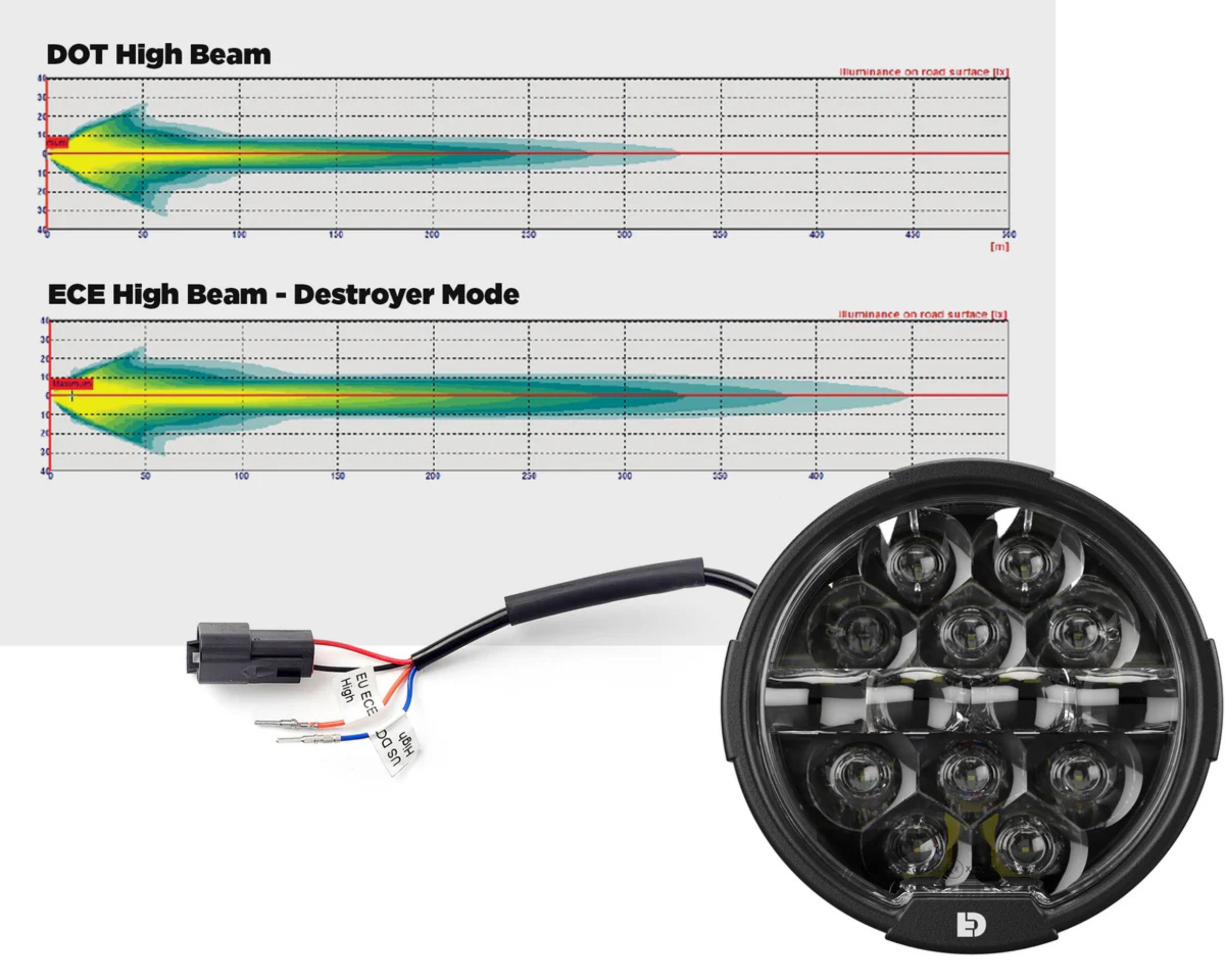

Like no other headlight before, the Destroyer features two different high beam intensities allowing riders to choose between a maximum allowable DOT high beam, or the Destroyer high beam that doubles your output delivering an insane driving beam over 200 feet wide and 1500 feet long.
DOT approved if you want it, or a 1500-foot destroyer beam if you don’t – how is this possible? Thanks to Denali’s advanced experience with optical design and beam regulations (and some clever innovation), Denali was able to provide two user-selectable high beam wires pre-pinned and labeled for either USA DOT or European ECE performance. How is that possible? Simply push your selected high beam wire into the waterproof DT connector and use the pre-applied heat shrink to secure and conceal the un-used wire. Denali’s DOT beam reaches the maximum allowable candela for North America, while their destroyer high beam is purposefully designed to meet the much higher candela values allowed by the ECE regulations! The result is the worlds-first motorcycle headlight system that can deliver maximum performance and un-matched versatility to the global market!

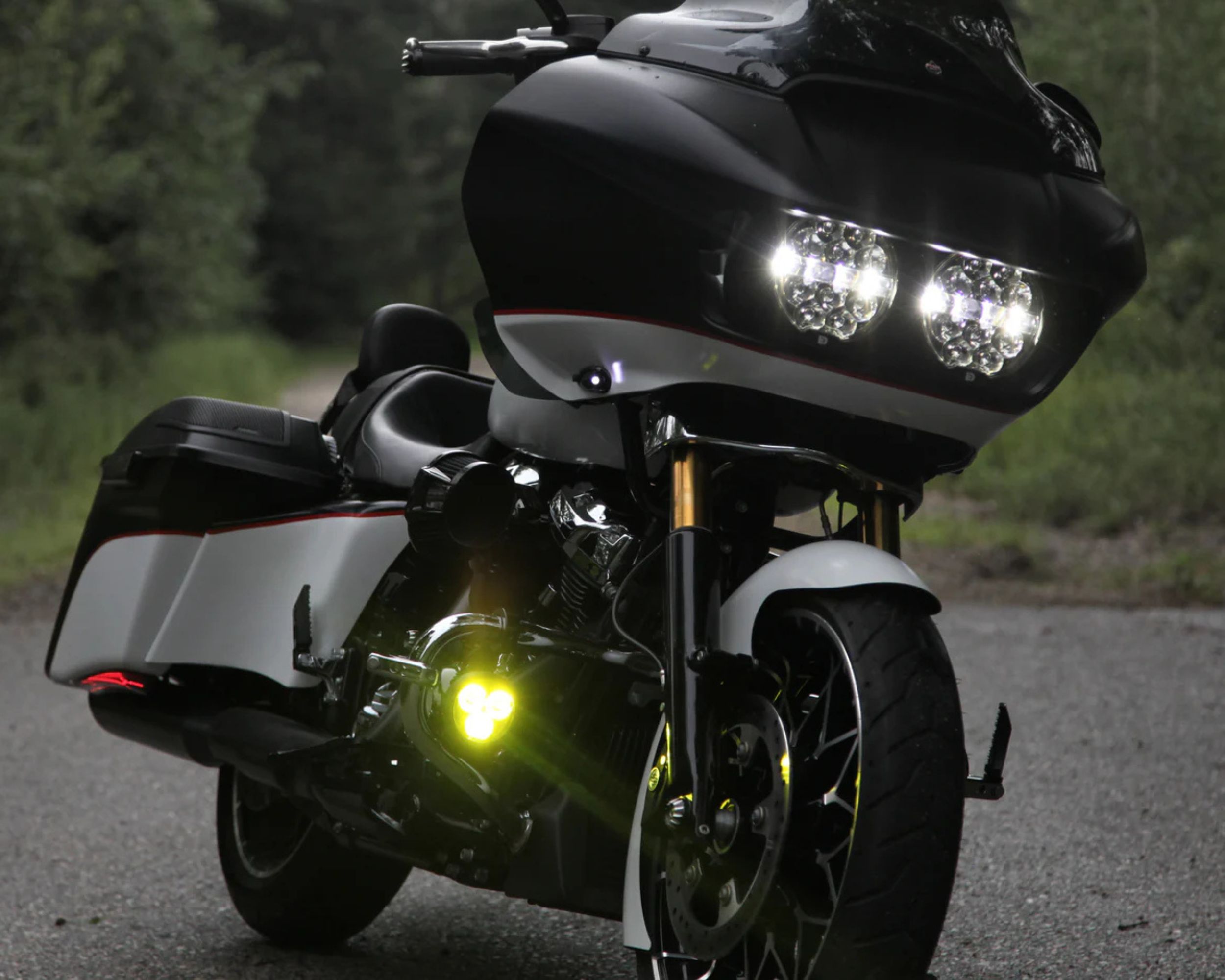

Denali’s unique multi-mount housing design allows for effortless mounting in universal applications (without the need for a headlight bucket) but also seamlessly integrates into the H-D Road Glide and Street Glide with their easy-to-install plug-&-play bracket & wiring kits.
D14 LED Headlight Features
– Dual High Beam Design – Choose DOT high beam or Destroyer high beam
– DOT/SAE street-legal high/low – in all 50 US states
– ECE streel-legal high/low – Option for EU & global markets
– Insane 12,900 raw lumens – Per pod all-on high/low

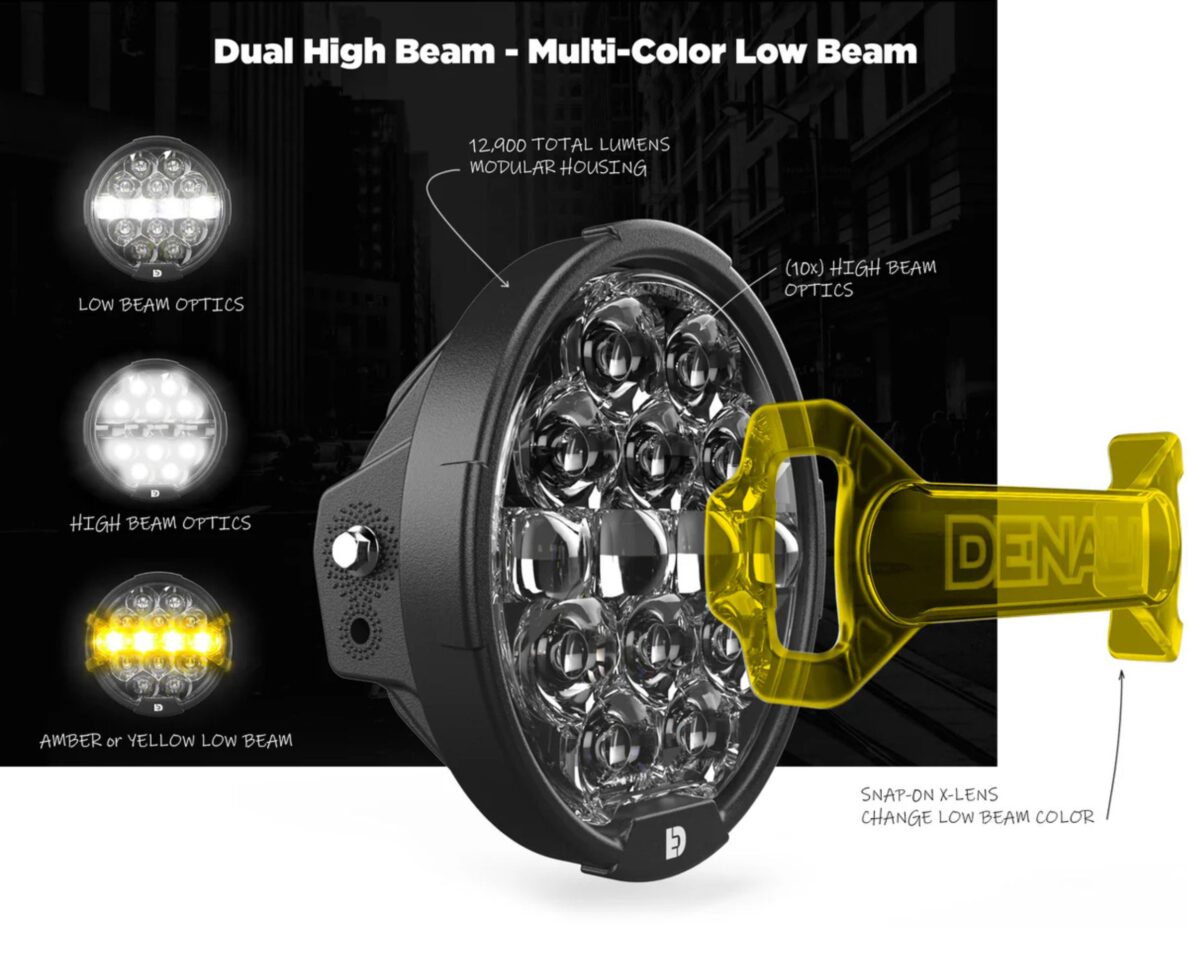

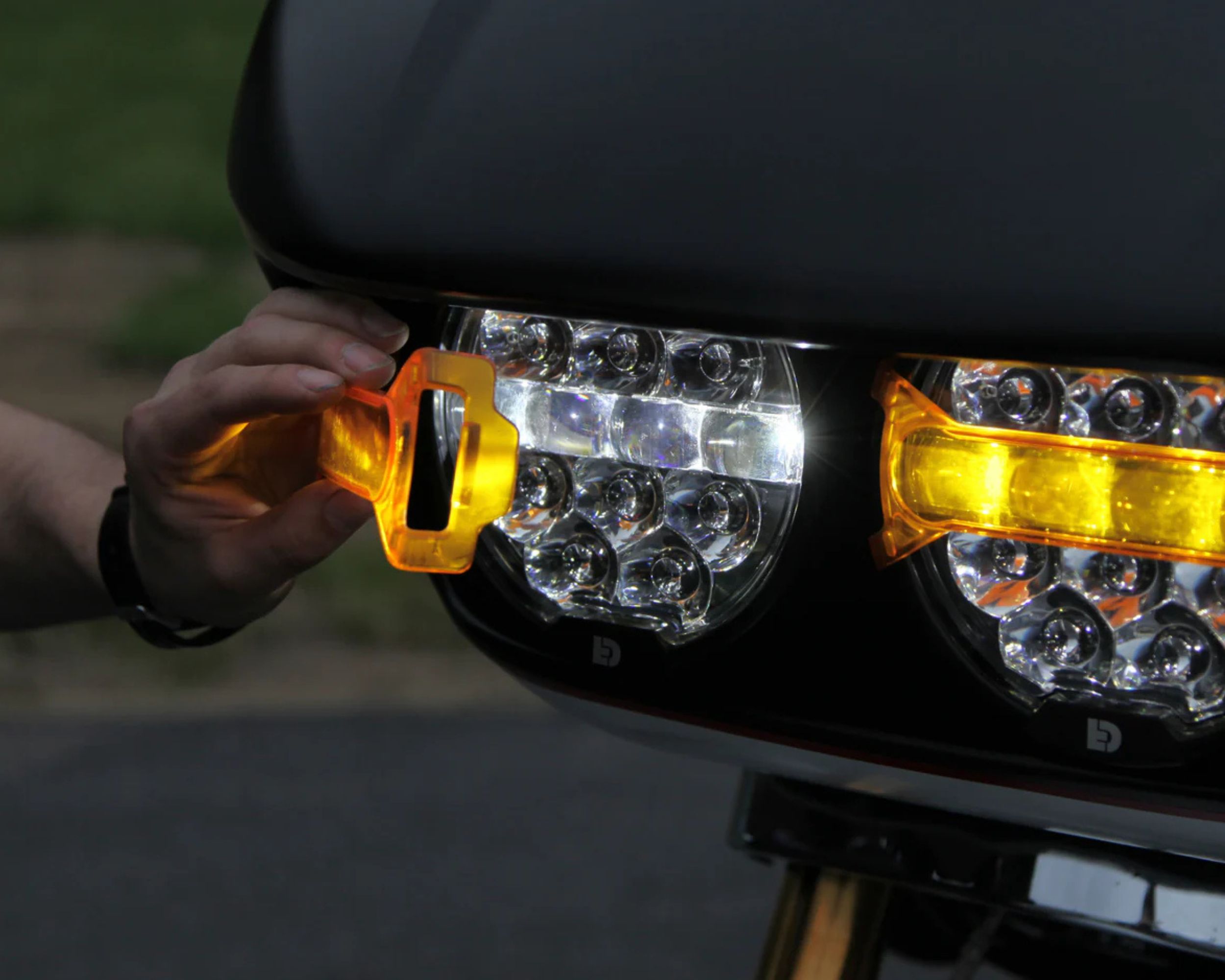

– Modular X-Lens System – Change low beam color on-the-fly to amber or yellow

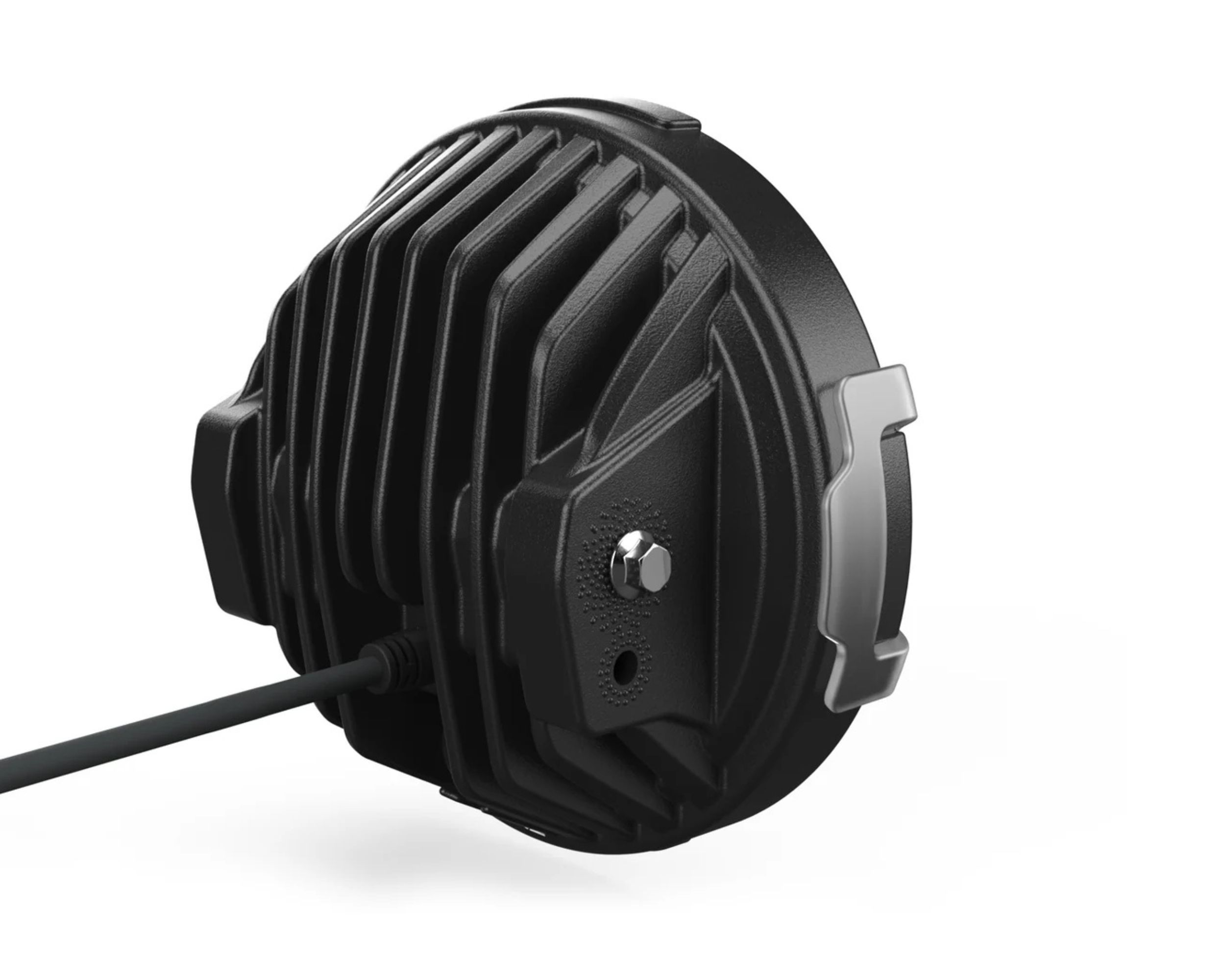

– Multi-Mount Housing Design – Enables universal or integrated mounting with or without headlight bucket
– Ultra-slim Profile – Enables effortless mounting in tight Harley-Davidson applications
– Hassle-Free EMC Protection – CISPR25 ensures no interference with radios or controllers
– Easy-Adjust Design – Allows headlight adjustment on-the-fly without taking the bike apart
– DrySeal Waterproof Construction – IP69K with internally stripped and potted cable entry
– Complete Plug-&-Play Headlight Upgrade Kits – Available for select Harley-Davidson models
Highlights
Dual High Beam Design – Choose DOT high beam or Destroyer high beam
Insane 12,900 raw lumens – Per pod all-on high/low
Modular X-Lens System
Multi-Mount Housing Design
Ultra-slim Profile
Easy-Adjust Design
DrySeal Waterproof Construction – IP69K
Required Accessories
Make sure you choose an appropriate wiring harness to go along with these lights.
D14 X-Lens also available separately – Selective Yellow X-Lens / Amber X-Lens
Product Specifications
D14 LED Headlight Specs:
LEDs: (14x) 8-Watt High Intensity LED
Max Power Draw: 105 Watts / 8 Amps
Raw Lumens: 12,900
Operating Voltage: 9-32 VDC
Pod Size: 171.45mm (6.75″) Round x 76.2mm (3″) Deep
Pod Weight: 0.90 kg
EMC R10 & CISPR 25
IP68 & 69K Waterproof, Submersible, & High-pressure Spray
DOT/SAE Compliant & ECE R149 Approved Low Beam
DOT/SAE Compliant High Beam (Blue Wire)
ECE R149 Approved High Beam (Orange Wire)
Mounting: Two M8x1.25 thread pitch holes across center horizontal axis of lamp spaced 120mm apart. 15mm – 20mm thread penetration recommended for each bolt. Fits original headlight mounts with at least 120mm between mounting points.
Beam Specs:
Destroyer Mode: ECE High + Low
Raw Lumens: 12,900
Power Draw: 105 Watts
Beam Distance: 1500 feet (457.2 meters)
Beam Width: 230 feet (70.10 meters)
DOT High Beam Mode – DOT High + Low:
Raw Lumens: 7,675
Power Draw: 55 Watts
Beam Distance: 850 feet (259.08 meters)
Beam Width: 230 feet (70.10 meters)
DOT & ECE Low Beam Only:
Raw Lumens: 3,362
Power Draw: 32 Watts
Beam Distance: 530 feet (161.54 meters)
Beam Width: 230 feet (70.10 meters)
What’s in the box?
DENALI D14 Destroyer LED Motorcycle Headlight – Universal x 1
This includes:
D14 LED Headlight x 1
M8x20mm Stainless Mounting Bolts (1.25 Thread Pitch) x 4
X-Lenses – Sold Separately
3-pin Deutsch Female Pigtail (P-DEUTSCHCONPT3) – Sold Separately
Mounting Instructions
Note: Neither a trunnion nor spacers and bolts required for installation on original headlight mounts spaced wider than 120mm are included.
