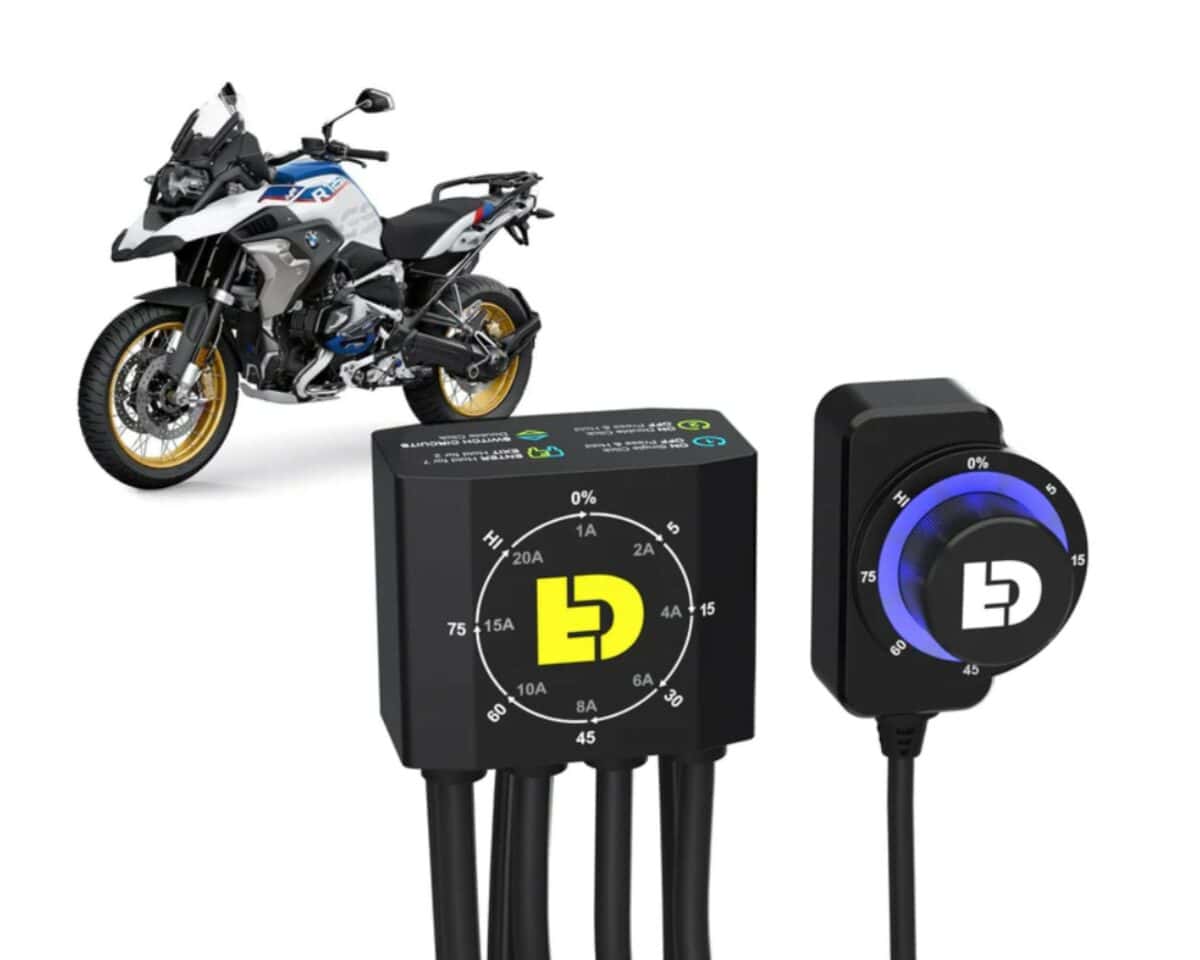

DENALI DialDim Lighting Controller for BMW R1250GS

Hands down, the coolest and smartest way to control auxiliary lighting on your BMW R1250GS!

SKU DNL.WHS.25600

 27,400.00 ( incl. GST )

1+ in stock

Add to Wishlist
Add to Wishlist
Excl. Shipping & Other Charges  [?] Order Now to ship Tomorrow  [?]


Share
The Denali DialDim Lighting Controller offers precise illumination control for BMW R1250GS motorcycles, allowing riders to fine-tune their lighting setup with ease. Whether you're adjusting the brightness of your headlights or auxiliary lights, this controller ensures optimal visibility on the road. Upgrade your BMW R1250GS lighting system with the Denali DialDim Controller, which provides easy-to-use illumination control for various riding conditions. With its intuitive design, you can adjust the brightness of your lights effortlessly, enhancing safety and visibility during day and night rides. Experience enhanced motorcycle safety with the DialDim Lighting Controller, which allows riders to illuminate the road ahead with precision. Whether you're navigating dark roads or urban streets, this controller offers reliable dimming control to suit your needs, making it a must-have accessory for BMW R1250GS enthusiasts. https://bigbadbikes.com/brand/denali/

Product Description

Denali brings you the DialDim Lighting Controller for BMW R1250GS. This is hands down, the coolest and smartest way to control auxiliary lighting on your BMW R1250GS! This DialDim Lighting Controller has the same amazing features and settings as Denali’s universal controller but includes a plug-&-play wiring adapter to enable effortless installation on the BMW R1250 GS and other R1250-series motorcycles. Simply connect to your battery and to one plug under your seat to unlock unique flash features and full independent dimming control of two sets of Denali driving lights.

Denali’s ground-breaking DialDim™ Lighting Controller features a multicolor halo dimming switch that allows you to independently turn on/off and dim two sets of auxiliary lights from a single consolidated wiring harness. The LED halo switch displays your exact settings and allows for effortless dimming on the fly. The blue halo controls light set one and the green halo controls light set two; simply double click to switch between the two circuits.

The controller also features high beam, turn signal, and horn inputs to unlock intelligent flash features that can cancel your aux lights with your turn signal, flash your aux lights as a turn signal, or strobe your lights when you sound your horn.

More Features, More Feedback!

Denali’s patent-pending multicolor halo dimmer switch can do a whole lot more than just turn your lights on and off and dim them. For starters, it displays the exact intensity of both of your lights so you’re never stuck guessing if your lights are on, or what intensity they’re set to.

Thanks to the electronically fused circuits, the halo switch can also display, and allow you to select, the fuse values for each circuit. And if a fuse trips, the LED halo will turn red providing real-time feedback and allow for resetting the fuse.

Last but not least, the switch halo doubles as a battery monitor with a low-voltage cutoff feature. Denali’s industry-first design will flash different colors on startup to display your battery health and automatically shut off your auxiliary lights if the battery voltage drops below 10.8 volts.

The controller housing and switch both feature a fully waterproof design with gaskets and o-rings at every joint to ensure hassle-free operation in outdoor environments.

Features

ON/OFF & Dim – Independently control two sets of lights on/off and intensity level using the single DialDim™ Switch. The blue halo controls light set one and the green halo controls light set two. Double click to switch between the two circuits.

High/Low Sync – Your auxiliary lights will automatically switch between your selected dim setting to full intensity with the factory high beam switch. Simply connect the blue input wire to your vehicle’s high beam circuit to enable this feature.

Stealth Mode – A clever 0% dim setting on the switch allows your lights to be “off” during normal driving conditions but will jump to 100% intensity with your vehicle’s high beam switch. The lights will also react to turn signal and horn inputs in this mode but will remain off when no inputs are detected.

Cancel with Turn Signal – When enabled the main lights (blue circuit 1) will cancel in sync with your signal to prevent “washing out” your factory turn signal. Simply connect the yellow and orange input wires to your vehicle turn signal circuit to enable this feature.

Flash as Turn Signal – When enabled your amber visibility lights (green circuit 2) will flash in sync with your factory turn signals. Simply connect the yellow and orange input wires to your vehicle turn signal circuit to enable this feature.

Strobe with Horn – When enabled your auxiliary lights on both circuits will strobe at 4Hz when you sound your horn. Simply connect the green input wire to your vehicle horn circuit to enable this feature.

Electronically Fused Circuits – Both light circuits are electronically fused and can be set right from the switch itself! The halo will illuminate red to notify you when a circuit fused is tripped.

Voltage Display Indicator – Upon vehicle startup, the switch halo will flash green to indicate a healthy battery voltage, or flash red to indicate a battery voltage that is below 11.8v.

Low Voltage Cutoff – If the battery voltage drops below 10.8v the lights will not power on preventing you from being stranded. The switch halo will flash 4 red LEDs to indicate the low voltage condition.

DialDim™ Harness Overview

The dedicated light outputs are labeled and color coded so adding one or two sets of lights to you vehicle couldn’t be any easier. Connect your main lights to the blue leads and your 2nd set of lights (typically fog or visibility lights) to the green leads.

Then simply connect the ring terminals to the vehicle battery and the white 12v input wire to a switched power source. To enable the high beam sync, turn signal flashing features, or horn flashing features simply connect the input wires to the corresponding circuit on the vehicle.

In addition the controller harness and switch, the kit includes (4x) five foot plug-&-play light extensions and a handlebar switch mount. Simply add the light pods and your ready to ride!

Modular Mounting, Universal Design

Denali engineered our DialDim Lighting Controller with all of your outdoor adventures in mind. Denali’s patent-pending dimmer switch is designed to be handlebar mounted or surface mounted in both the horizontal or vertical position. The space-saving design is ideal for ATVs, Side by Sides, Jeeps, and Trucks (in addition to motorcycles) by enabling independent control of two sets of lights from a single switch.

Intuitive Lighting Control

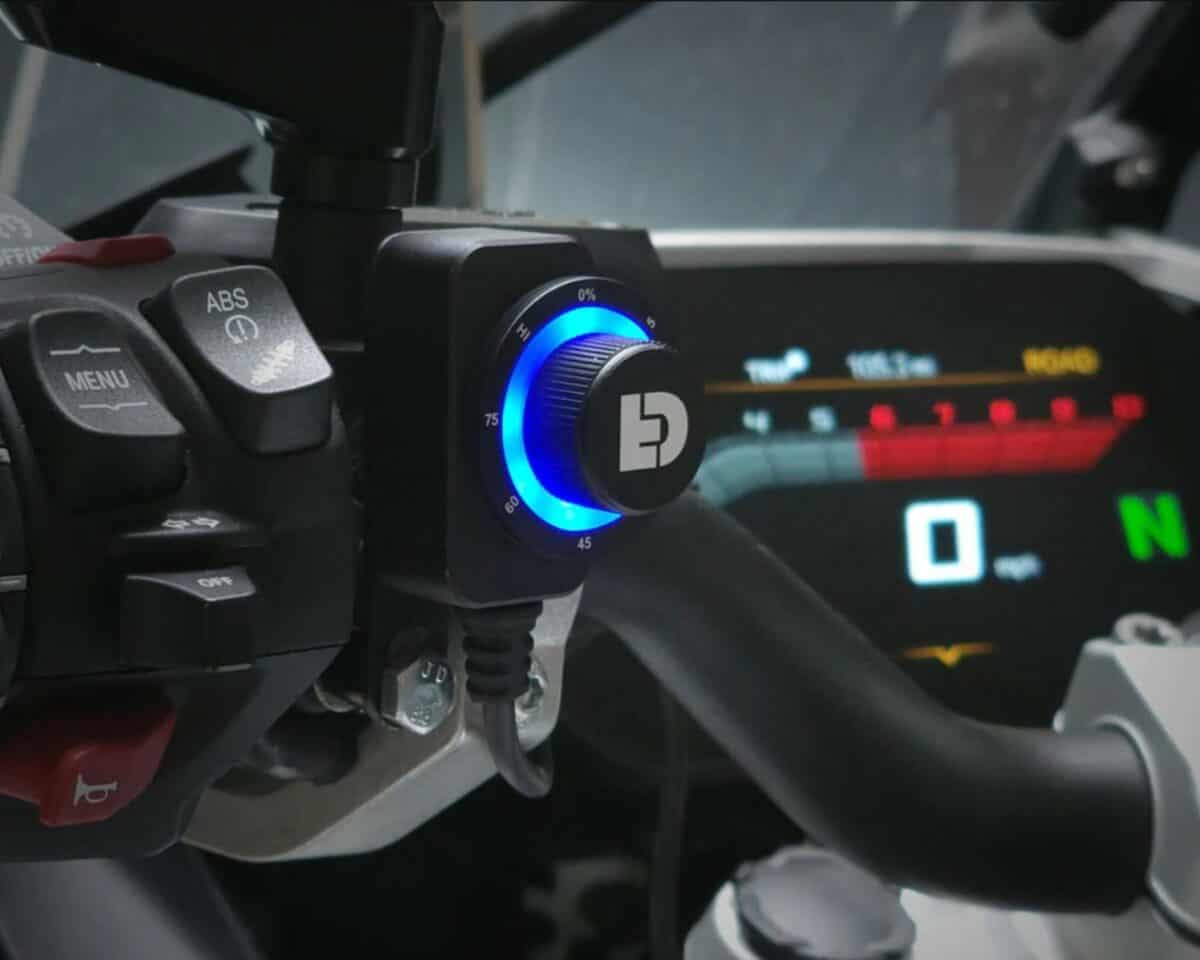

The DialDim™ Lighting Controller has an easy to operate and easy to read multifunction switch

Operating the Multifunction Switch

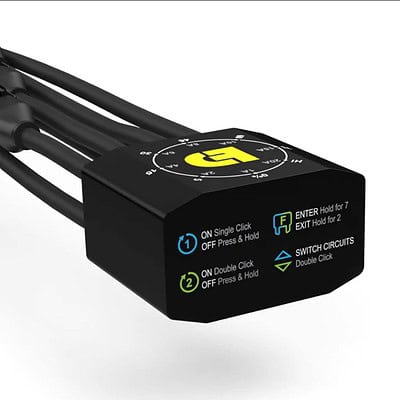

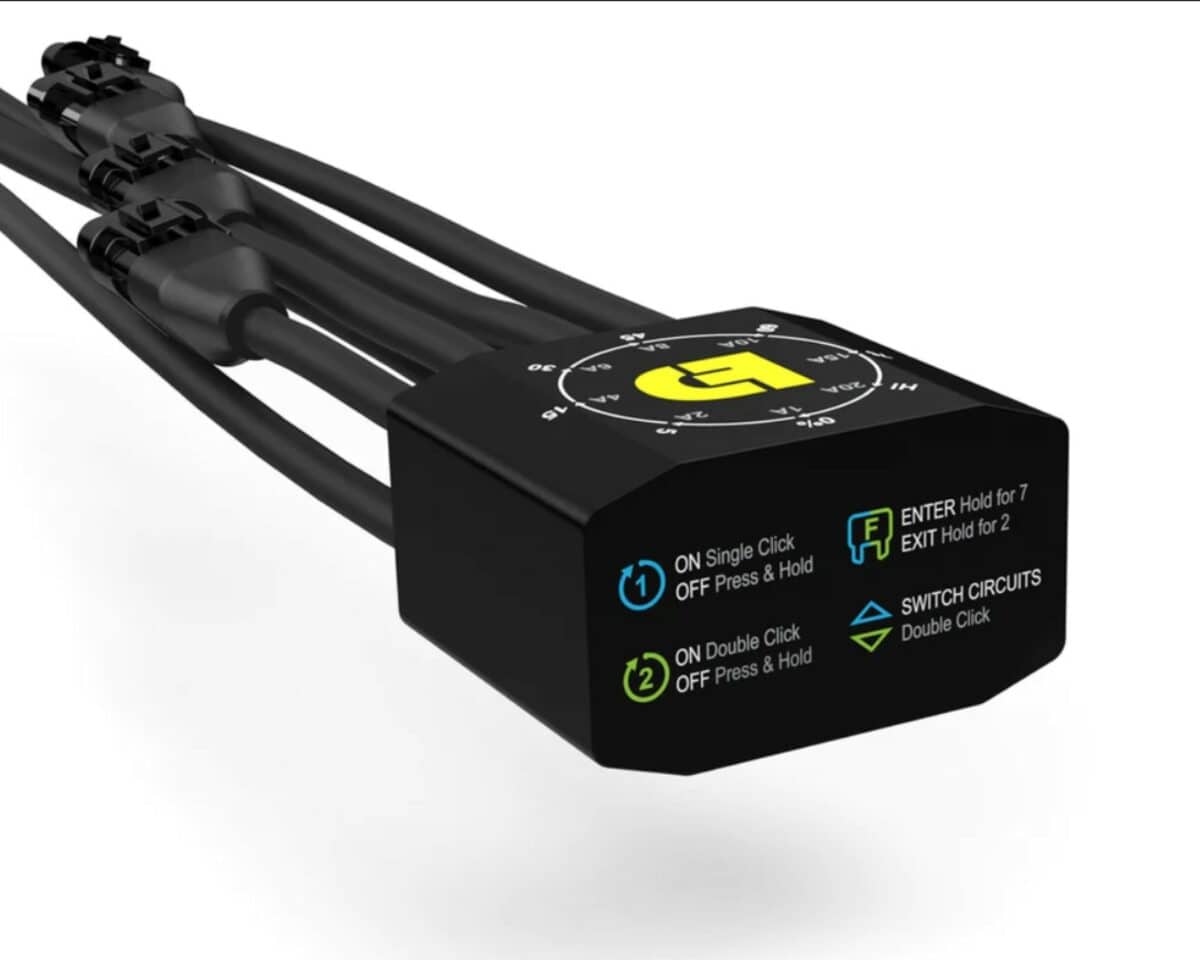

The switch functions are easy to remember, but Denali went ahead and printed it on the back of the controller housing anyway (just in case you forget)!

Light Set One: Single click ON –> Press & Hold OFF
Light Set Two: Double Click ON –> Press & Hold OFF
Switch Between Circuits: Double Click
Fuse Setting Mode: 7 second hold ENTER –> 2 Second Hold EXIT

Reading the Halo Display

Start Up Flash Sequence
Green Flash on Start Up: Battery voltage above 11.8v
Red Flash on Start Up: Battery voltage below 11.8v
Red Flash (4 LEDs) on Start Up: Battery voltage below 10.8v. Low voltage cutoff mode. The lights will not turn on if voltage is below 10.8v.

Lighting Control
Steady Blue: Light set one operation & status
Steady Green: Light set two operation and status

Fuse Status & Setting
Solid Red: Tripped fuse (on the circuit that turned red). Press and hold for 7 seconds to enter fuse setting mode.
Blue Flashing: Fuse setting mode (circuit one)
Green Flashing: Fuse setting mode (circuit tow)

Fuse Setting Mode
To enter fuse setting mode, press and hold for 7 seconds until the blue and green circuits begin flashing.
When the circuits are flashing you can dial up or down to select your desired fuse value.

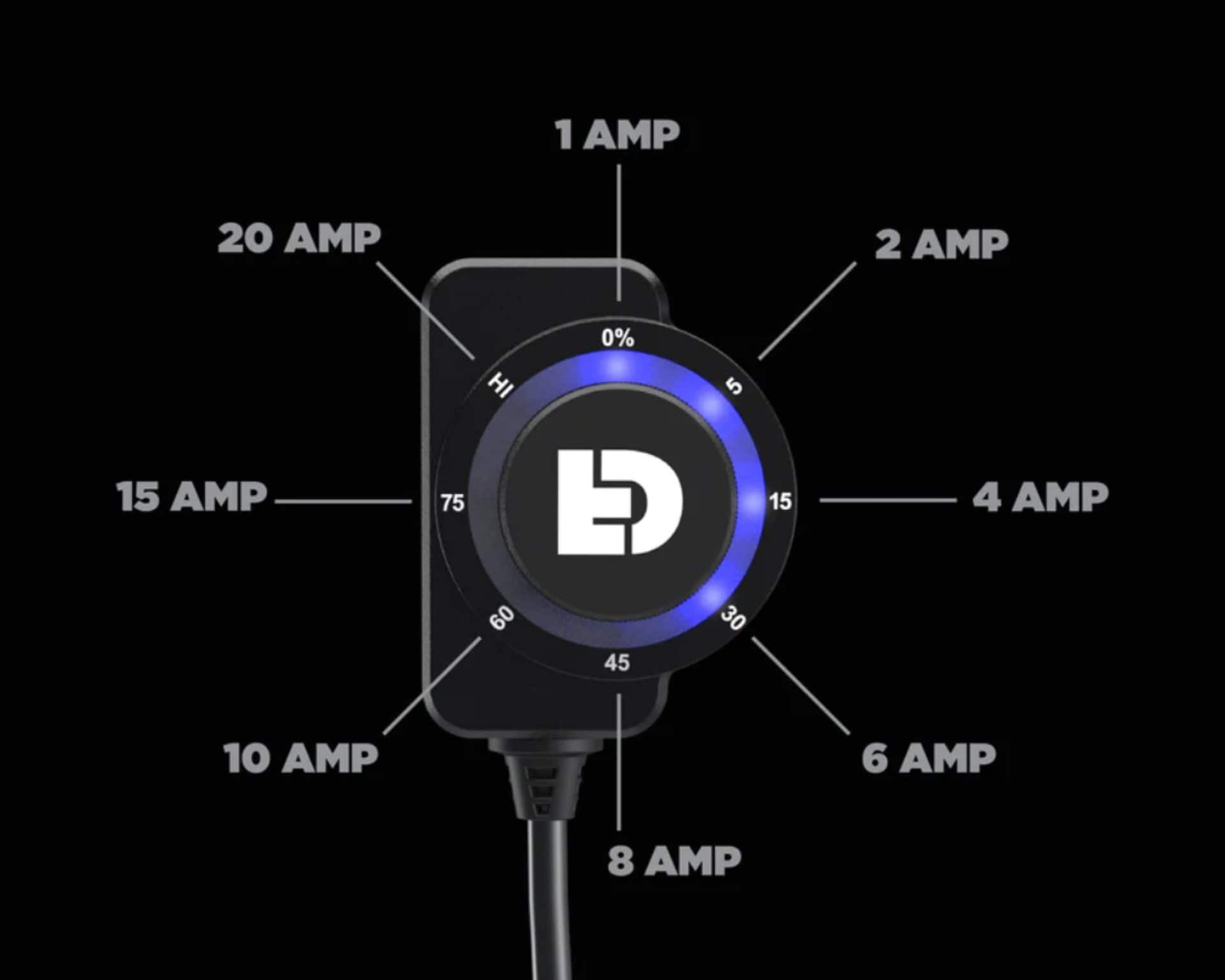

The eight positions around the halo are repurposed in fuse setting mode to provide 8 fuse options.
Double click to switch between the blue and green circuit.
Press and hold for 2 seconds to exit the fuse setting mode.

Compatible with all Denali 2.0 lights.

Highlights

Feature rich lighting controller for BMW R1250GS
Independently control two sets of lights on/off and intensity level using the single DialDim™ Switch
Controller also features high beam, turn signal, and horn inputs to unlock intelligent flash features that can cancel your aux lights with your turn signal, flash your aux lights as a turn signal, or strobe your lights when you sound your horn.
Stealth Mode
Flash as Turn Signal
Strobe with Horn
Doubles up as a battery monitor with a low-voltage cutoff feature


Product Specifications

Two fully independent light circuits
Eight intensity levels per circuit (5%, 15%, 30%, 45%, 60%, 75%, 100%)
Eight electronic fuse values (1A, 2A, 4A, 6A, 8A, 10A, 15A, 20A)
ONE input harness (ignition, high beam, horn, left turn, right turn)
20A max per circuit (30A max combined)
Operating Voltage: 12 VDC
Note: The length of the switch lead is 72″, an 48″ Switch Extension is available for purchase separately.

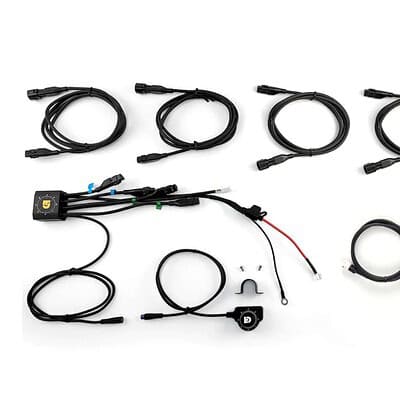

What’s in the box?

Denali DialDim Lighting Controller for BMW R1250GS x 1 Kit
The Kit includes the following:
DialDim™ Controller x 1
DialDim™ Multi-function Switch x 1
7/8″ Switch Mounting Band x 1
M3.5×6 DIN 912 x 2
Trigger Harness x 1
Light Extension Cables x 4
Mounting Instructions


Installation Instructions


Additional information
Weight 2 kg
