RAM Mounts Diamond Plate with 1″ Ball

Product Description

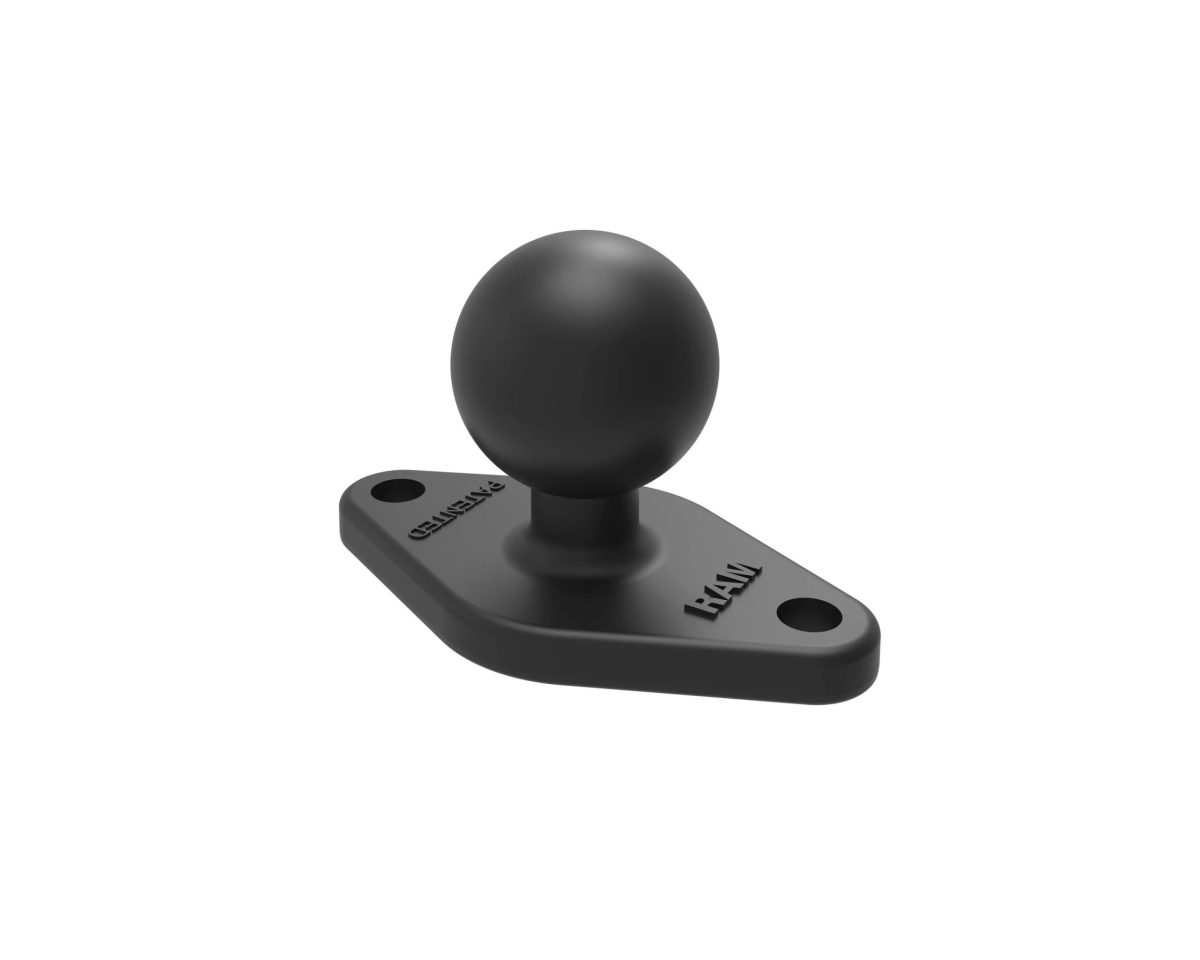

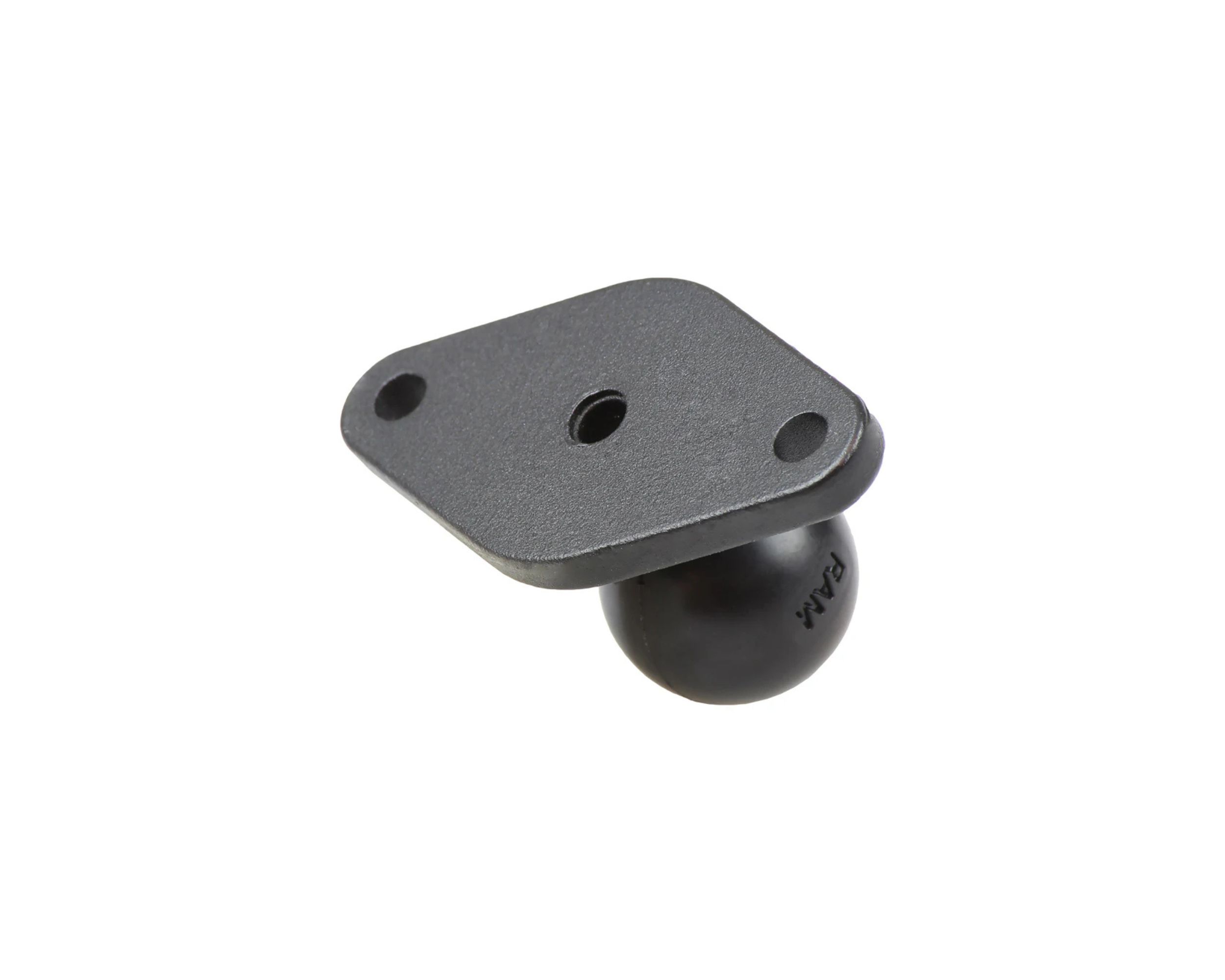

The RAM Diamond Plate with Ball consists of a 25.4mm B size rubber ball connected to a 61.72mm x 33.27mm diamond plate. The diamond plate features two holes that measure 48.56mm from center to center, matching the industry-standard AMPS hole pattern. This diamond ball base is compatible with a wide variety of RAM device holders and cradles. Ball and socket technology allows for near-infinite adjustability.

It’s made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments

Highlights

Diamond plate features industry-standard AMPS hole pattern

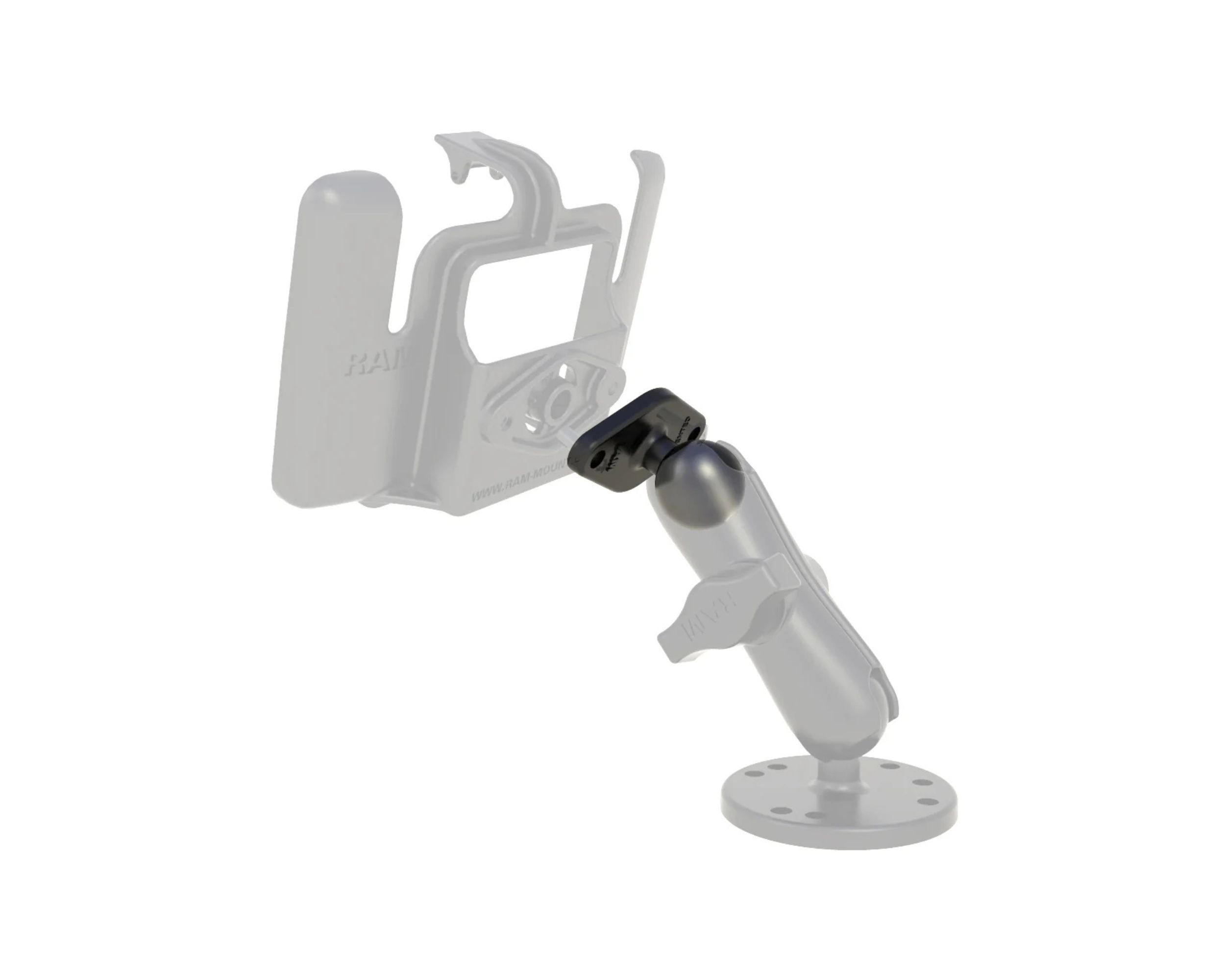

Compatible with several RAM device holders and cradles
Made of powder-coated, marine-grade aluminum
Backed by a lifetime warranty

Required Accessories

Adapter Only. RAM Arm Cradle/ Holder Mount for Device / Mount Base / Socket Arm sold separately.

Product Specifications

Material: Marine-grade Aluminium / Rubber
Surface: Powder coated
Color: Black
Hole Pattern: 2-Hole AMPS – 48.56mm
Diamond Plate Size: 61.72mm x 33.27mm
Ball / Socket Size: B Size (25.4mm)
Weight: 0.0453kg
Maximum Load:
Standard Use: 0.90kgs
Heavy-Duty Use: 0.45kgs

What’s in the box?

RAM Mounts Diamond Plate with 1″ Ball x 1

Installation

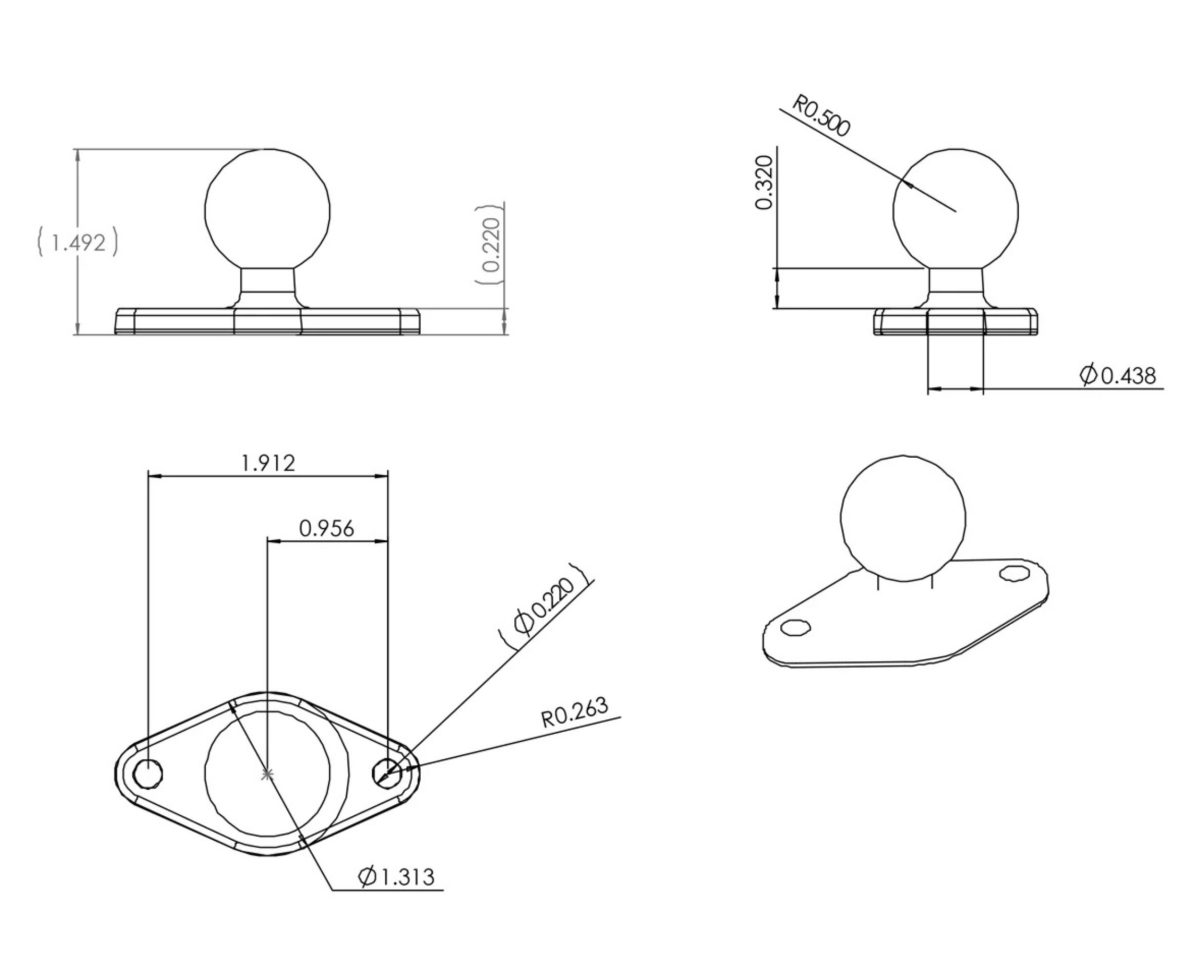

Drawing File – Diamond Ball Plate

Hole Pattern Reference Guide
