- Product Details
- Vehicle Compatibility
Product Description

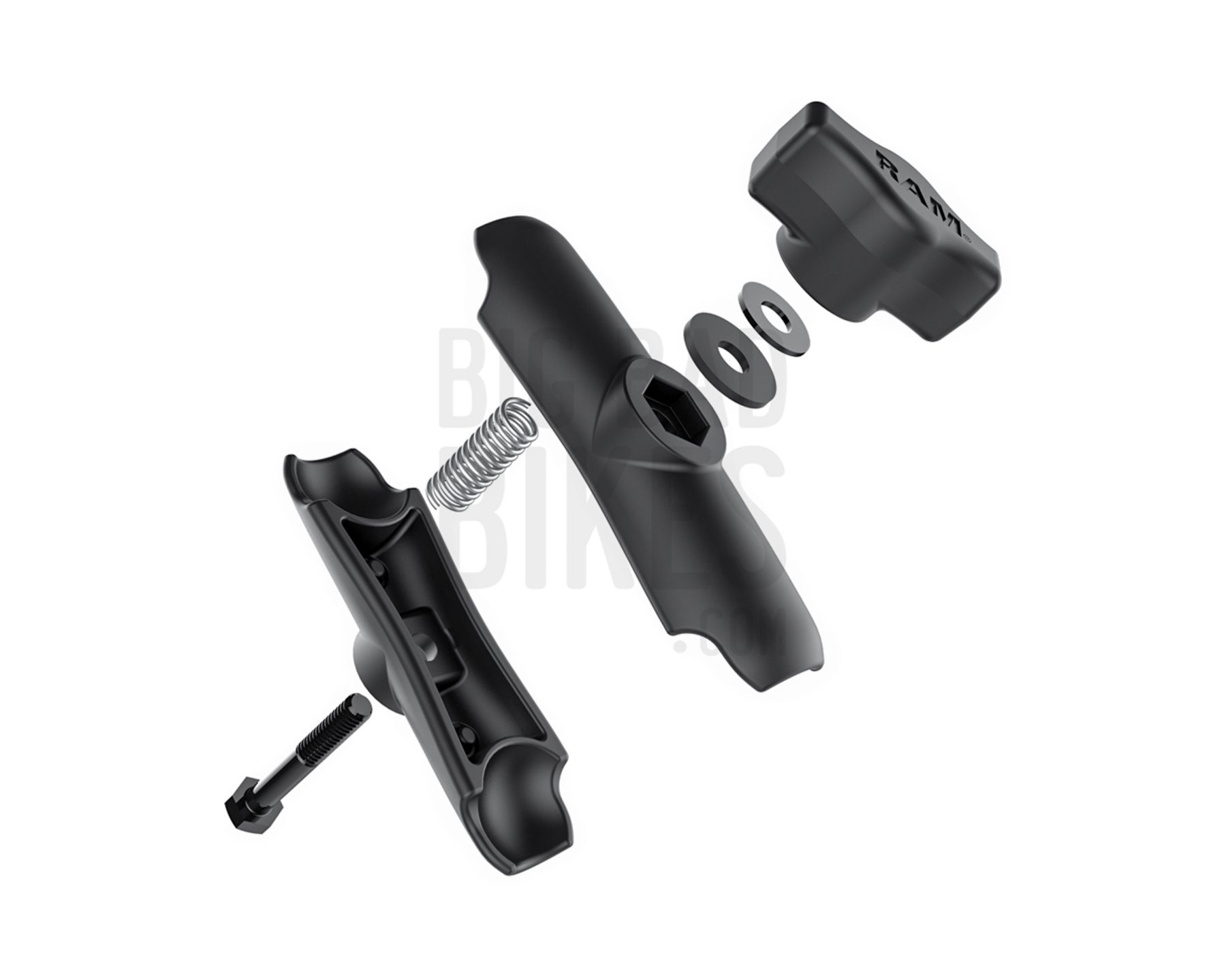

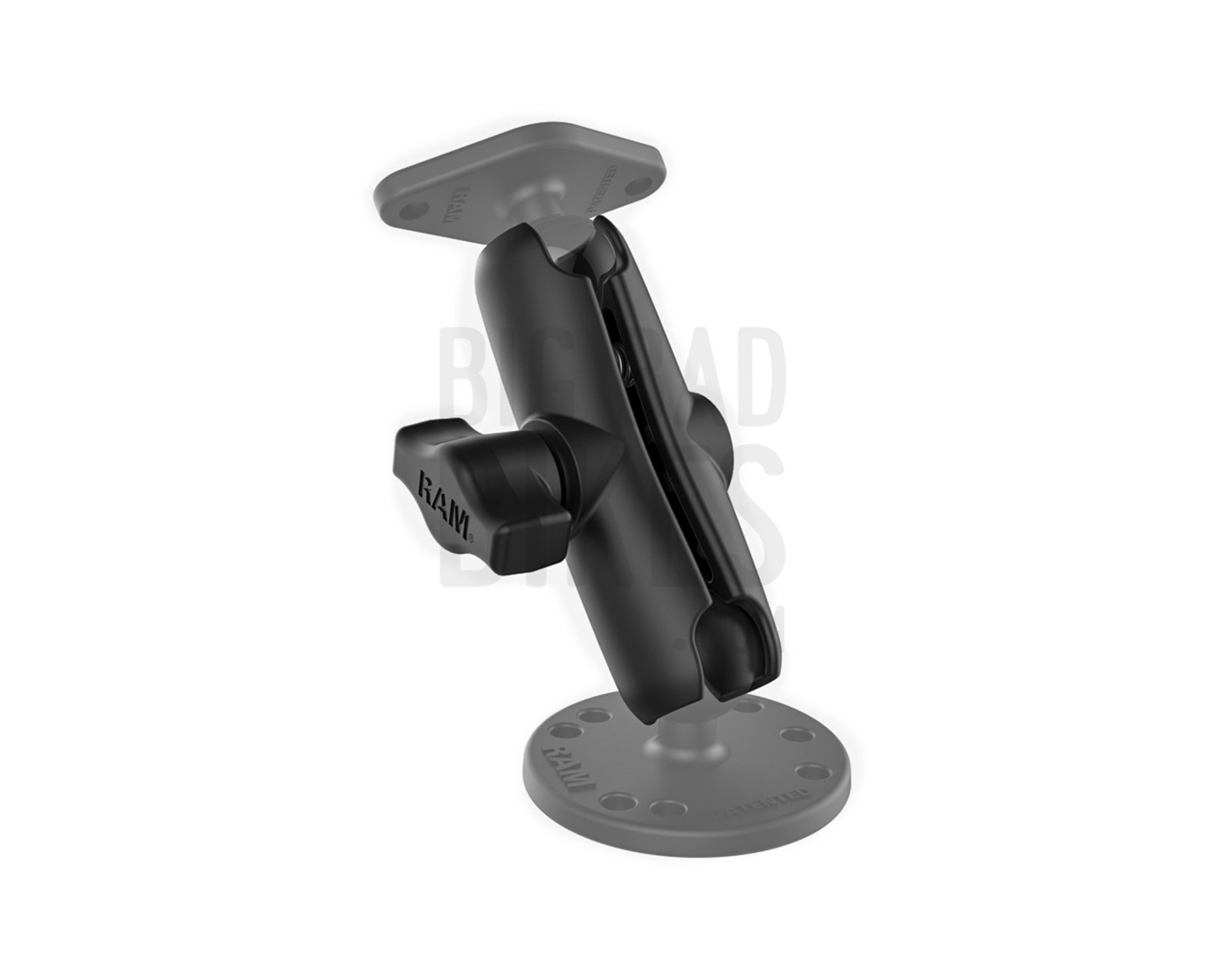

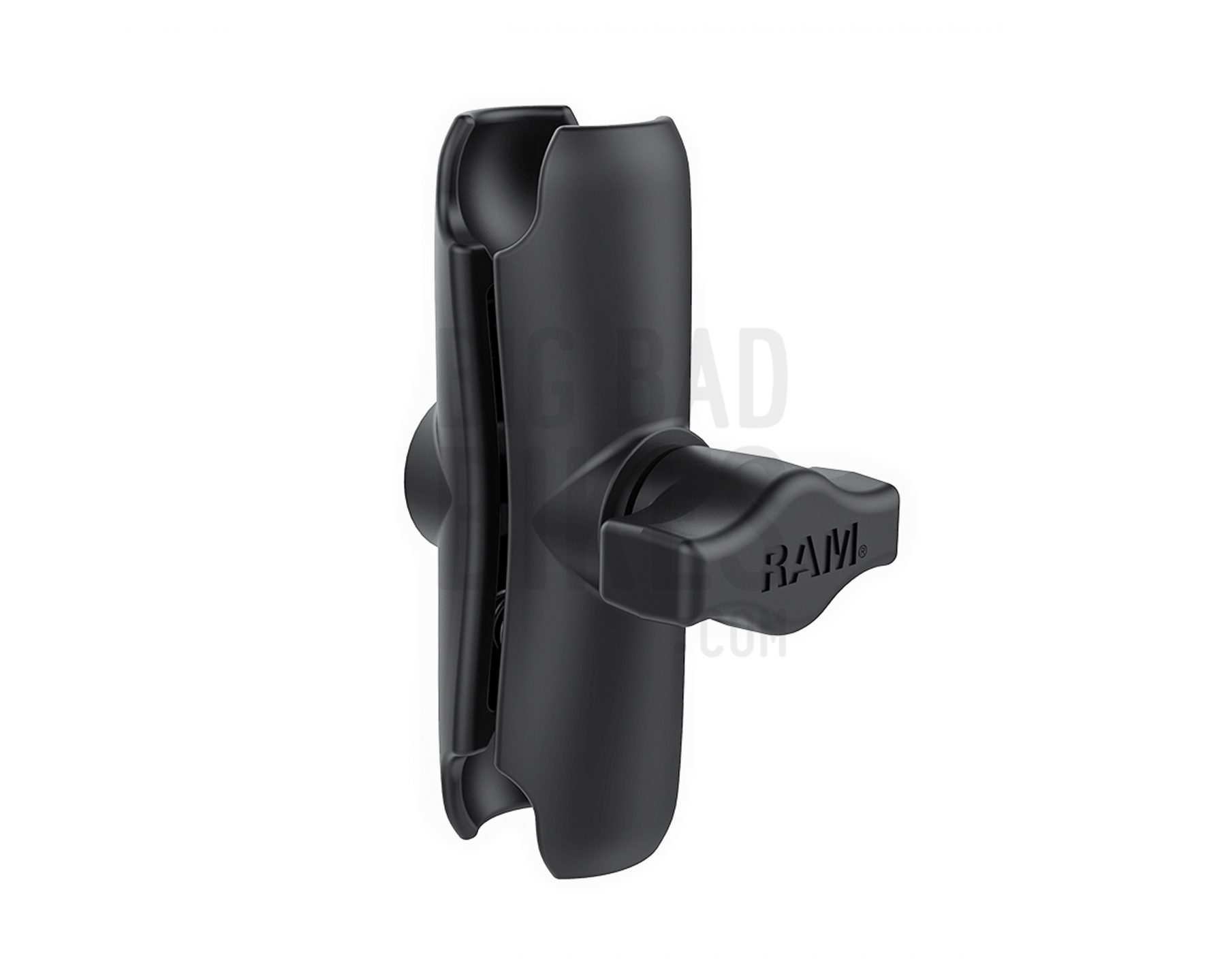

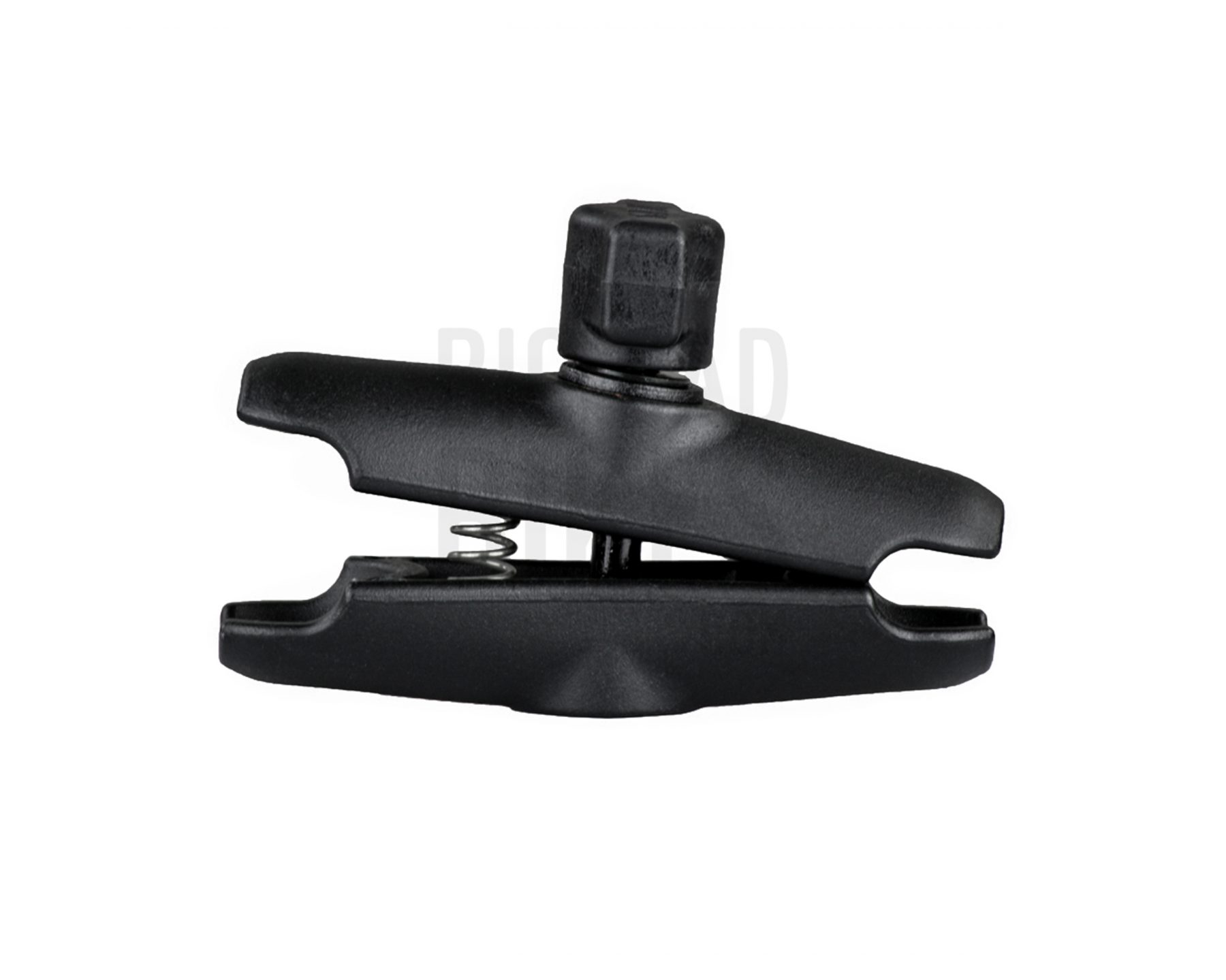

The RAM Double Socket Arm consists of a medium double socket arm that has a socket at both ends, that accommodates 25.4mm B size ball bases, device holders, and adapters. Double ball and socket technology allows for near-infinite adjustability of your RAM mounting system. A single spring inside the arm opens the end sockets, allowing you to pivot the ball and socket connection. With an overall length of 94.74mm and a socket-to-socket length of 76.2mm, this is the standard RAM double socket arm size. The easy to adjust knob allows for near-infinite adjustability for your connected device. This RAM Double Socket Arm is made of powder-coated, marine-grade aluminium for durability and reliability in the most demanding environments.
Highlights
Medium (standard) double socket arm
Ideal overall length of 94.74mm and a socket-to-socket length of 76.2mm
Attaches to any B size RAM ball component, including mounting bases and device holders
Backed by a lifetime warranty
Required Accessories
RAM Arm only. Mount Base Cradle/ Holder for Device sold separately.
Additional Information
RAM® Standard Length Double Socket Arm B-Size
https://youtu.be/n6WMoni4PLc
Source: RAM Mounts
Specifications
Product Specifications
Material: Marine-grade Aluminium
Surface: Powder coated
Color: Black
Overall Length: 94.74mm
Socket-to-socket length: 76.2mm
Ball / Socket Size: B Size (25.4mm)
Weight: 0.14kgs
Maximum Load:
Standard Use: 0.90kgs
Heavy-Duty Use: 0.45kgs
What’s in the box?
RAM Standard Double Socket Arm x 1
Installation
NA
